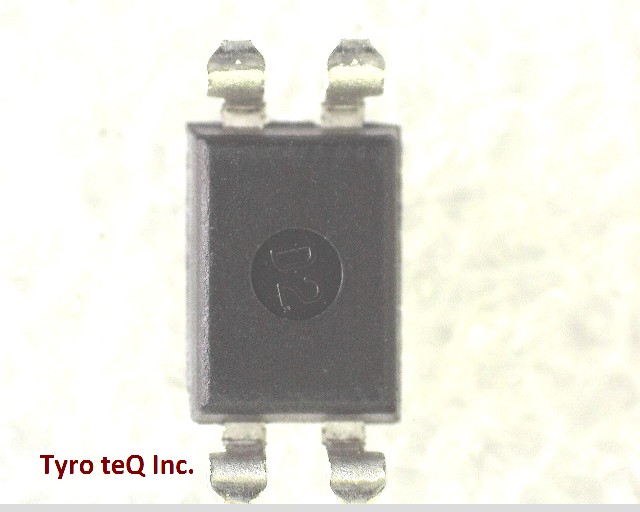

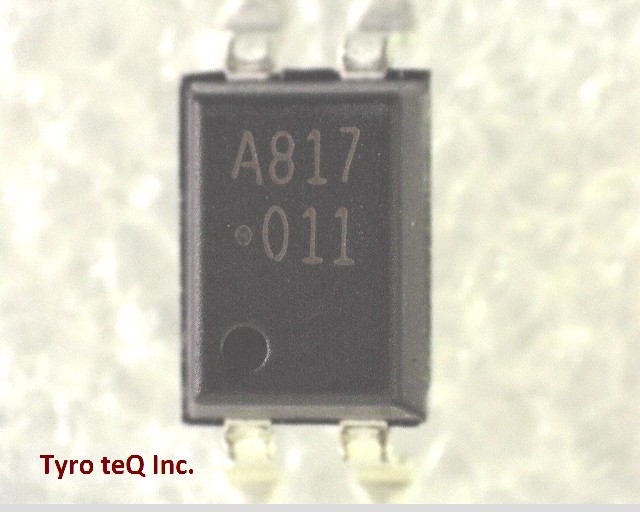

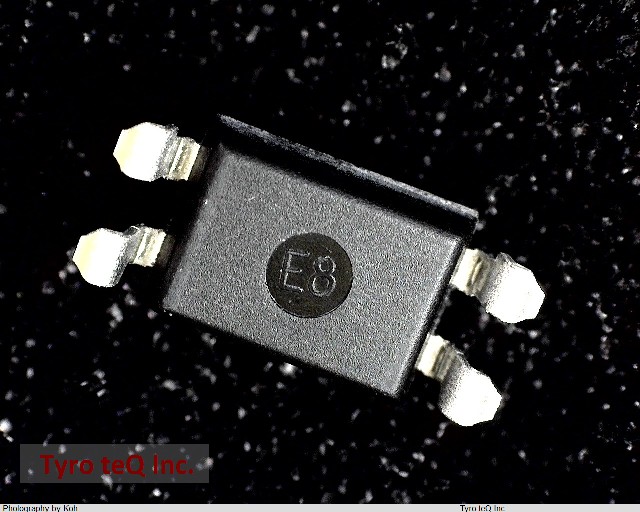

HCPL-817-300E

Name: HCPL-817-300E
Brand: BROADCOM
SKU: 400021127-0000-0000-0000

HCPL-817-300E - BROADCOM の商品詳細ページです。

２営業日以内に回答いたします

HCPL-817-300E の詳細情報

型番	HCPL-817-300E
メーカー	BROADCOM
Additional Feature	UL RECOGNIZED
Coll-emtr Bkdn Voltage-Min	35 V
Configuration	SINGLE
Current Transfer Ratio-Min	50 %
Current Transfer Ratio-Nom	50 %
Dark Current-Max	100 nA
Forward Current-Max	0.05 A
Forward Voltage-Max	1.4 V
Isolation Voltage-Max	5000 V
JESD-609 Code	e3
Mounting Feature	SURFACE MOUNT
Number of Elements	1
On-State Current-Max	0.03 A
Operating Temperature-Max	100 Cel
Operating Temperature-Min	-30 Cel
Optoelectronic Device Type	TRANSISTOR OUTPUT OPTOCOUPLER
Power Dissipation-Max	0.15 W
Response Time-Max	1.8E-5 s
Sub Category	Optocoupler - Transistor Outputs
Terminal Finish	MATTE TIN

会社名称	Broadcom Corporation.
設立	1991
所在地	5300 California Avenue (Buildings 1-8) Irvine, California 92617 United States
URL	http://www.broadcom.com/
