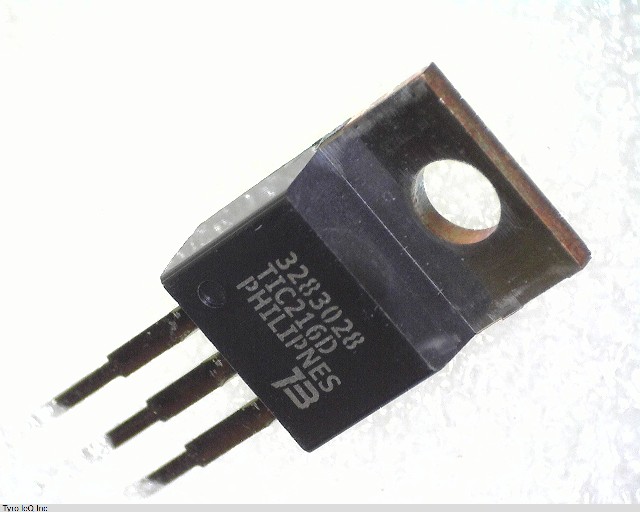

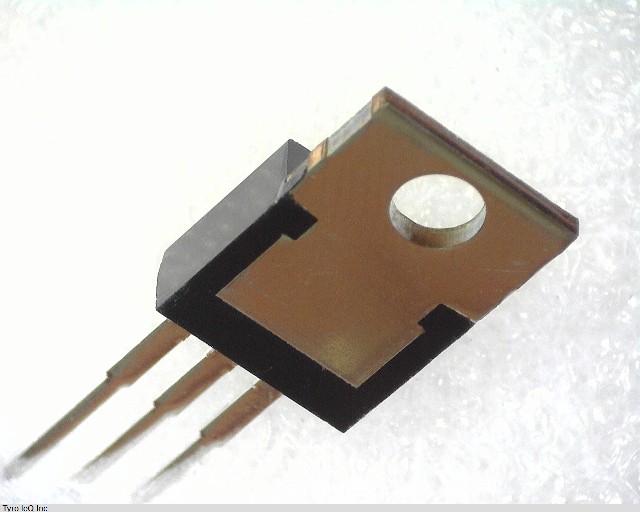

TIC216D データシート

Name: TIC216D
Brand: BOURNS
SKU: 300265325-0000-0000-0000

TIC216D - BOURNS の商品詳細ページです。

２営業日以内に回答いたします

TIC216D の詳細情報

型番	TIC216D
メーカー	BOURNS
データシート
Additional Feature	SENSITIVE GATE
Case Connection	MAIN TERMINAL 2
Configuration	SINGLE
Critical Rate of Rise of Commutation Voltage-Min	5 V/us
DC Gate Trigger Current-Max	5 mA
DC Gate Trigger Voltage-Max	2.2 V
Holding Current-Max	30 mA
JEDEC-95 Code	TO-220AB
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e0
Leakage Current-Max	2 mA
Number of Elements	1
Number of Terminals	3
On-State Voltage-Max	1.7 V
Operating Temperature-Max	110 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
RMS On-state Current-Max	6 A
Repetitive Peak Off-state Leakage Current-Max	100 uA
Repetitive Peak Off-state Voltage	400 V
Sub Category	TRIACs
Surface Mount	NO
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Device Type	4 QUADRANT LOGIC LEVEL TRIAC
