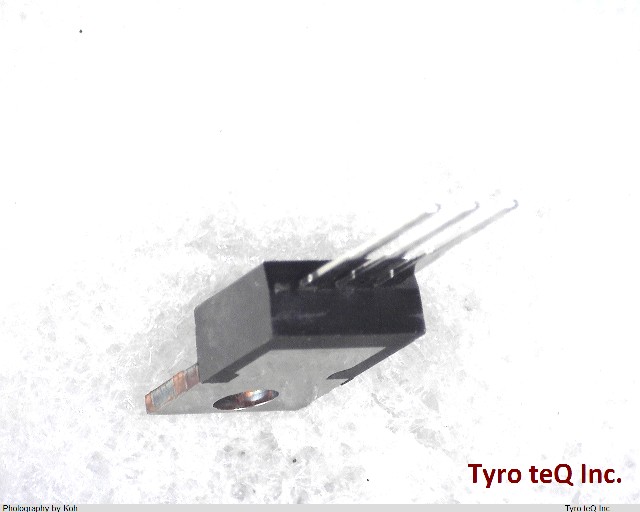

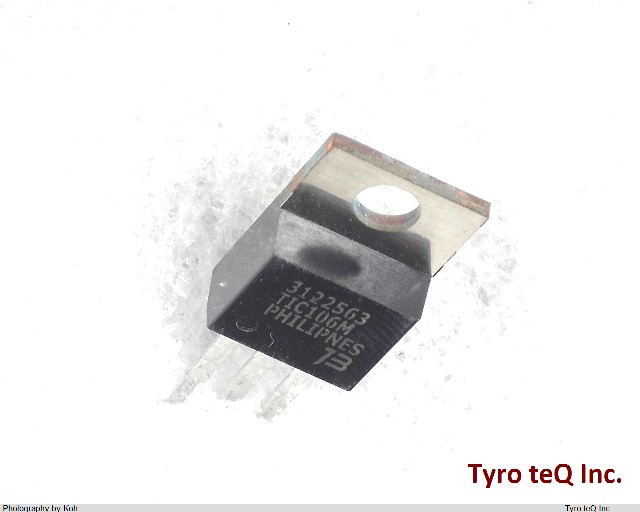

TIC106M

Name: TIC106M
Brand: BOURNS
SKU: 300009145-0000-0000-0000

TIC106M - BOURNS の商品詳細ページです。

２営業日以内に回答いたします

TIC106M の詳細情報

型番	TIC106M
メーカー	BOURNS
Case Connection	ANODE
Circuit Commutated Turn-off Time-Nom	7.7 us
Configuration	SINGLE
Critical Rate of Rise of Off-state Voltage-Min	10 V/us
DC Gate Trigger Current-Max	0.2 mA
DC Gate Trigger Voltage-Max	1 V
Holding Current-Max	5 mA
JEDEC-95 Code	TO-220AB
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e0
Leakage Current-Max	0.4 mA
Non-Repetitive Pk On-state Cur	30 A
Number of Elements	1
Number of Terminals	3
On-state Current-Max	3200 A
Operating Temperature-Max	110 Cel
Operating Temperature-Min	-45 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
RMS On-state Current-Max	5 A
Repetitive Peak Off-state Leakage Current-Max	2 uA
Repetitive Peak Off-state Voltage	600 V
Repetitive Peak Reverse Voltage	400 V
Sub Category	Silicon Controlled Rectifiers
Surface Mount	NO
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Device Type	SCR
