SMAJ5.0CA Bourns

SMAJ5.0CA - BOURNS の商品詳細ページです。

1

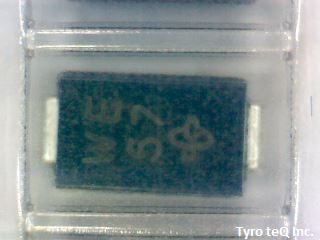

SMAJ5.0CA
  • SMAJ5.0CA
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

SMAJ5.0CA の詳細情報

  • 仕様・詳細
  • メーカー情報
型番SMAJ5.0CA
メーカーBOURNS
Additional Feature EXCELLENT CLAMPING CAPABILITY
Breakdown Voltage-Max 7 V
Breakdown Voltage-Min 6.4 V
Breakdown Voltage-Nom 6.7 V
Clamping Voltage-Max 9.2 V
Configuration SINGLE
Diode Capacitance-Min 1750 pF
Diode Element Material SILICON
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Forward Voltage-Max (VF) 3.5 V
JEDEC-95 Code DO-214AC
JESD-30 Code R-PDSO-C2
JESD-609 Code e0
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 200 W
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 125 Cel
Operating Temperature-Min -65 Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE Meter
Peak Reflow Temperature (Cel) 240
Polarity BIDIRECTIONAL
Power Dissipation-Max 1 W
Qualification Status Not Qualified
Reference Standard AEC-Q101
Rep Pk Reverse Voltage-Max 5 V
Reverse Current-Max 240 uA
Reverse Test Voltage 5 V
Sub Category Transient Suppressors
Surface Mount YES
Technology AVALANCHE
Terminal Finish MATTE TIN
Terminal Form C BEND
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 10
会社名称Bourns, Inc.
設立1947
所在地1200 Columbia Ave. Riverside, CA 92507-2129, United States
URLhttp://www.bourns.com/
