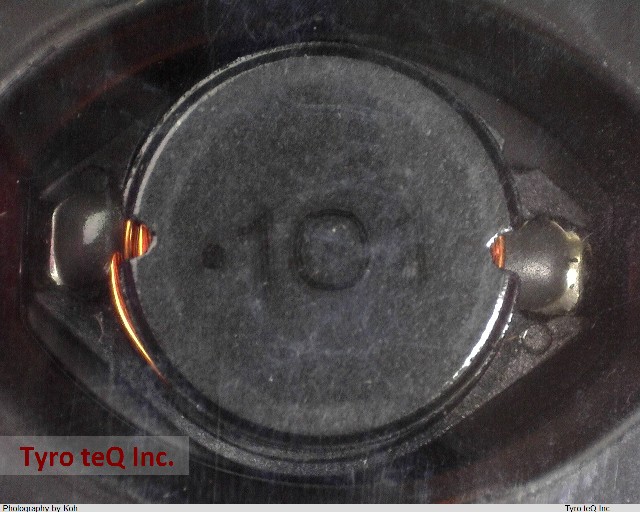

SDR1806-101KL
1
-
- 個
２営業日以内に回答いたします
SDR1806-101KL の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | SDR1806-101KL |
|---|---|
| メーカー | BOURNS |
| Case/Size Code | 7255 |
| Construction | Rectangular |
| Core Material | FERRITE |
| DC Resistance | 0.19 ohm |
| Inductance-Nom (L) | 100 uH |
| Inductor Application | POWER INDUCTOR |
| Inductor Type | GENERAL PURPOSE INDUCTOR |
| JESD-609 Code | e2 |
| Number of Functions | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 125 Cel |
| Operating Temperature-Min | -40 Cel |
| Package Height | 6.6 mm |
| Package Length | 18.3 mm |
| Package Style | SMT Meter |
| Package Width | 14 mm |
| Packing Method | TR, EMBOSSED, 13 INCH |
| Rated Current-Max | 1.7 A |
| Self Resonance Frequency | 7 MHz |
| Shape/Size Description | RECTANGULAR PACKAGE |
| Shielded | NO |
| Surface Mount | YES |
| Terminal Finish | COPPER TIN |
| Terminal Placement | DUAL ENDED |
| Terminal Shape | ONE SURFACE |
| Test Frequency | 0.1 MHz |
| Tolerance | 10 % |
| 会社名称 | Bourns, Inc. |
|---|---|
| 設立 | 1947 |
| 所在地 | 1200 Columbia Ave. Riverside, CA 92507-2129, United States |
| URL | http://www.bourns.com/ |
