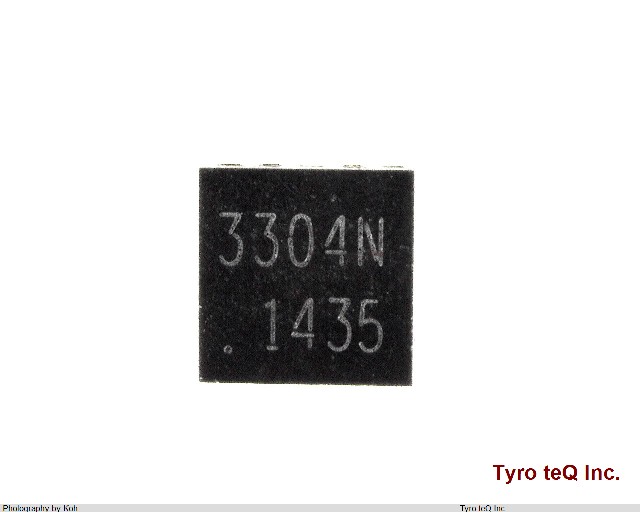

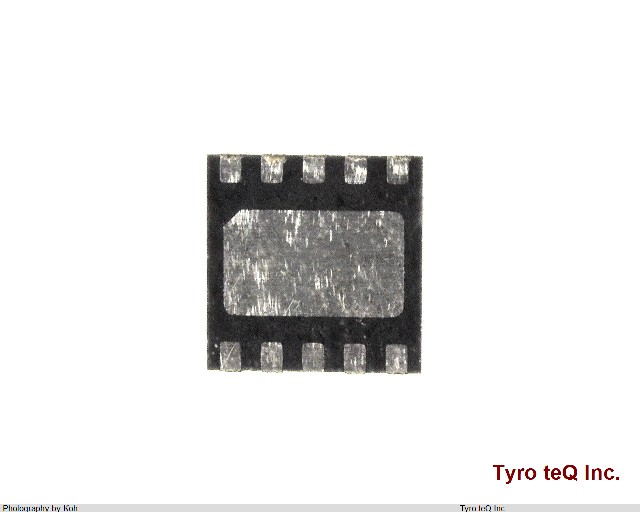

CDDFN10-3304N データシート

Name: CDDFN10-3304N
Brand: BOURNS
SKU: 400088317-0000-0000-0000

CDDFN10-3304N - BOURNS の商品詳細ページです。

２営業日以内に回答いたします

CDDFN10-3304N の詳細情報

型番	CDDFN10-3304N
メーカー	BOURNS
データシート
Additional Feature	LOW CAPACITANCE
Breakdown Voltage-Min	3.9 V
Breakdown Voltage-Nom	3.9 V
Case Connection	ANODE
Clamping Voltage-Max	18 V
Configuration	SINGLE
Diode Element Material	SILICON
Diode Type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 Code	S-PDSO-N10
JESD-609 Code	e3
Moisture Sensitivity Level	1
Non-rep Peak Rev Power Dis-Max	450 W
Number of Elements	1
Number of Terminals	10
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	SQUARE
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	250
Polarity	UNIDIRECTIONAL
Qualification Status	Not Qualified
Reference Standard	IEC-61000-4-2, 4-4, 4-5
Rep Pk Reverse Voltage-Max	3.3 V
Reverse Current-Max	1 uA
Reverse Test Voltage	3.3 V
Sub Category	Transient Suppressors
Surface Mount	YES
Technology	AVALANCHE
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	NO LEAD
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	70
