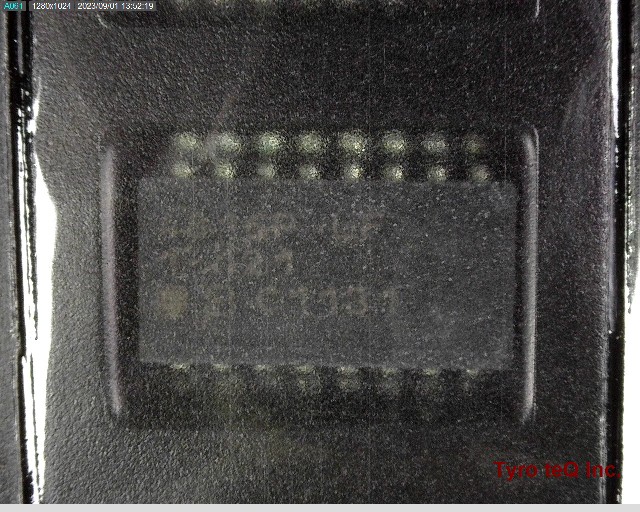

4816P-1-121LF データシート

Name: 4816P-1-121LF
Brand: BOURNS
SKU: 50011034-0000-0000-0000

4816P-1-121LF - BOURNS の商品詳細ページです。

２営業日以内に回答いたします

4816P-1-121LF の詳細情報

型番	4816P-1-121LF
メーカー	BOURNS
データシート
Construction	Chip
Element Power Dissipation	0.16 W
First Element Resistance	120 ohm
JESD-609 Code	e2
Lead Spacing	1.27 mm
Mounting Feature	SURFACE MOUNT
Network Type	ISOLATED
Number of Elements	1
Number of Functions	8
Number of Terminals	16
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Package Height	2.03 mm
Package Length	11.18 mm
Package Shape	RECTANGULAR PACKAGE
Package Style	SMT Meter
Package Width	5.59 mm
Packing Method	TR
Rated Power Dissipation (P)	1.28 W
Rated Temperature	70 Cel
Reference Standard	AEC-Q200
Resistance	120 ohm
Resistor Type	ARRAY/NETWORK RESISTOR
Size Code	2244
Sub Category	ARRAY/NETWORK RESISTOR
Technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/Cel
Temperature Coefficient Tracking	50 ppm/Cel
Terminal Finish	Tin/Copper (Sn/Cu)
Terminal Shape	GULL WING
Tolerance	2 %
Working Voltage	50 V
