4116R-1-103LF データシート

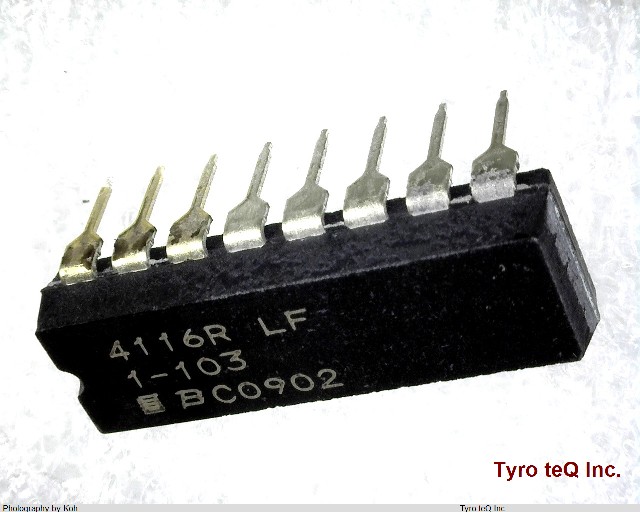

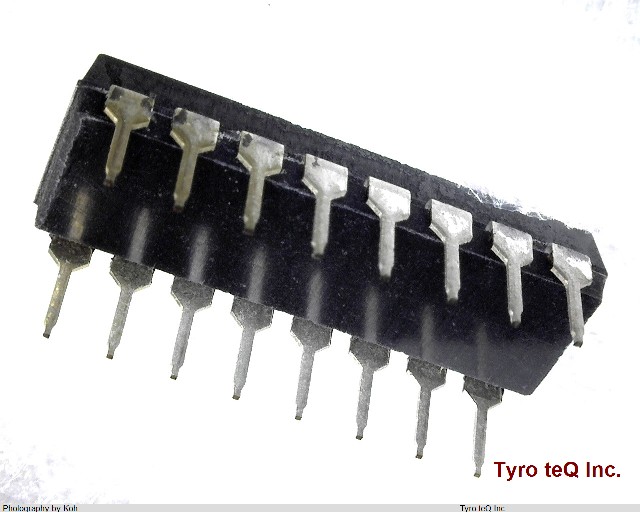

Name: 4116R-1-103LF
Brand: BOURNS
SKU: 50017415-0000-0000-0000

4116R-1-103LF - BOURNS の商品詳細ページです。

２営業日以内に回答いたします

4116R-1-103LF の詳細情報

型番	4116R-1-103LF
メーカー	BOURNS
データシート
Construction	Molded
Element Power Dissipation	0.25 W
First Element Resistance	10000 ohm
JESD-609 Code	e3
Lead Length	3.43 mm
Lead Spacing	2.54 mm
Mounting Feature	THROUGH HOLE MOUNT
Network Type	ISOLATED
Number of Elements	1
Number of Functions	8
Number of Terminals	16
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Package Height	4.57 mm
Package Length	21.97 mm
Package Shape	RECTANGULAR PACKAGE
Package Style	DIP Meter
Package Width	7.87 mm
Rated Power Dissipation (P)	2.25 W
Rated Temperature	70 Cel
Resistance	10000 ohm
Resistor Type	ARRAY/NETWORK RESISTOR
Size Code	8631
Sub Category	Array/Network Resistors
Technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/Cel
Temperature Coefficient Tracking	50 ppm/Cel
Terminal Finish	MATTE TIN
Terminal Shape	FLAT
Tolerance	2 %
Working Voltage	100 V
