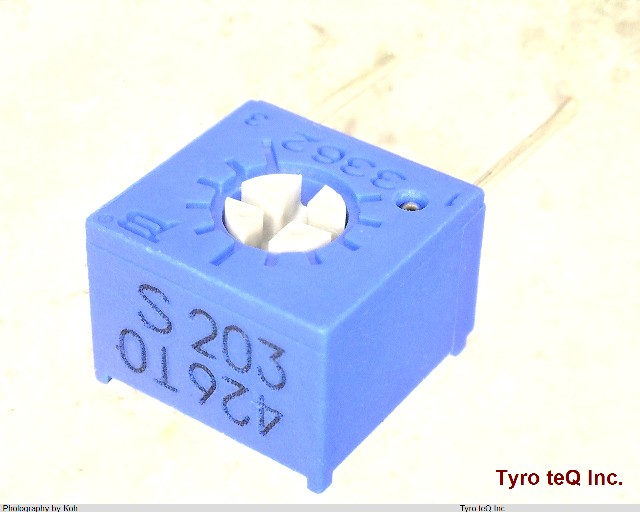

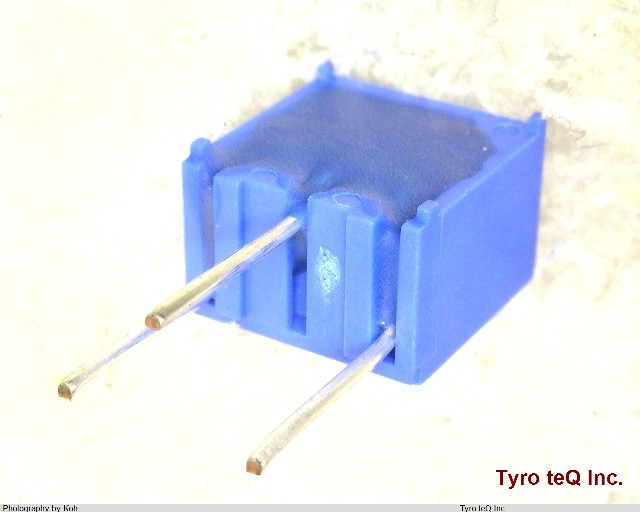

3362S-1-203LF
1
-
- 個
２営業日以内に回答いたします
3362S-1-203LF の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | 3362S-1-203LF |
|---|---|
| メーカー | BOURNS |
| Actuator Orientation | HORIZONTAL |
| Actuator Type | SCREW |
| Construction | Rectangular |
| Ganging Number | 1 |
| JESD-609 Code | e3 |
| Lead Diameter | 0.46 mm |
| Lead Length | 5.46 mm |
| Mounting Feature | THROUGH HOLE MOUNT |
| Number of Terminals | 3 |
| Number of Turns | 1 |
| Operating Temperature-Max | 125 Cel |
| Operating Temperature-Min | -55 Cel |
| Package Height | 6.99 mm |
| Package Length | 6.6 mm |
| Package Shape | RECTANGULAR PACKAGE |
| Package Style | PCB Mount Meter |
| Package Width | 4.88 mm |
| Packing Method | TUBE |
| Rated Power Dissipation (P) | 0.5 W |
| Rated Temperature | 70 Cel |
| Resistance | 20000 ohm |
| Resistance Law | LINEAR |
| Resistor Type | TRIMMER |
| Rotational Angle | 240 deg |
| Sub Category | Variable Resistors |
| Technology | CERMET |
| Temperature Coefficient | 100 ppm/Cel |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Shape | WIRE |
| Tolerance | 10 % |
| 会社名称 | Bourns, Inc. |
|---|---|
| 設立 | 1947 |
| 所在地 | 1200 Columbia Ave. Riverside, CA 92507-2129, United States |
| URL | http://www.bourns.com/ |
