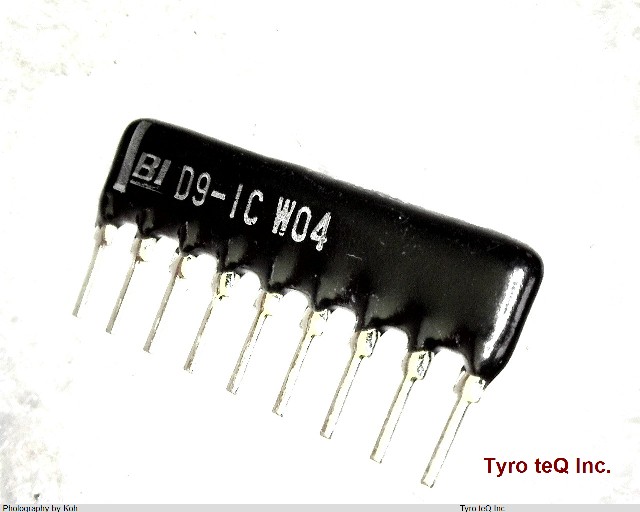

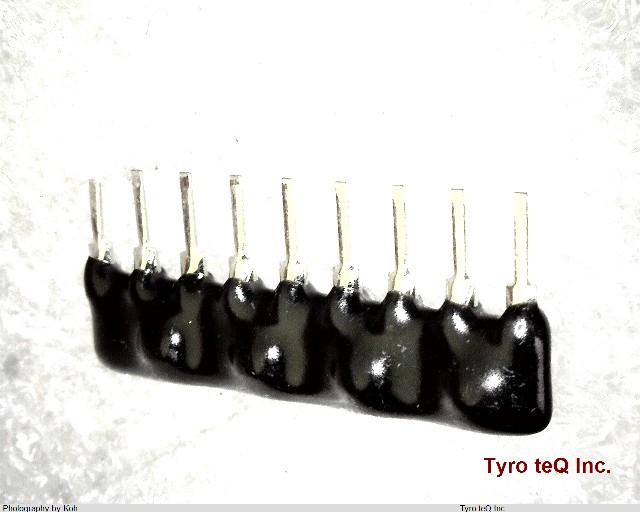

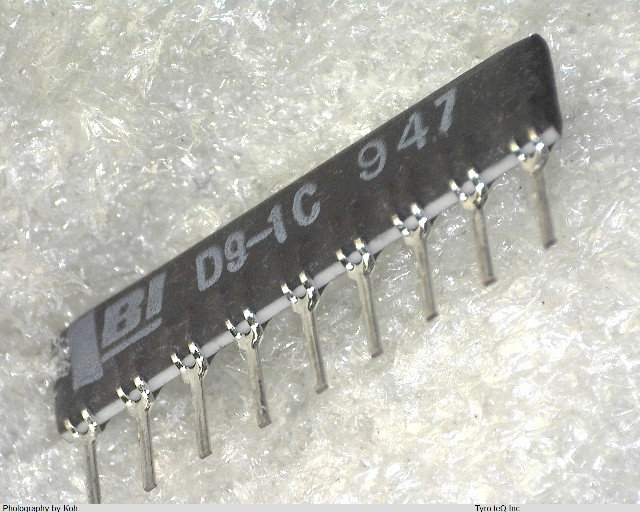

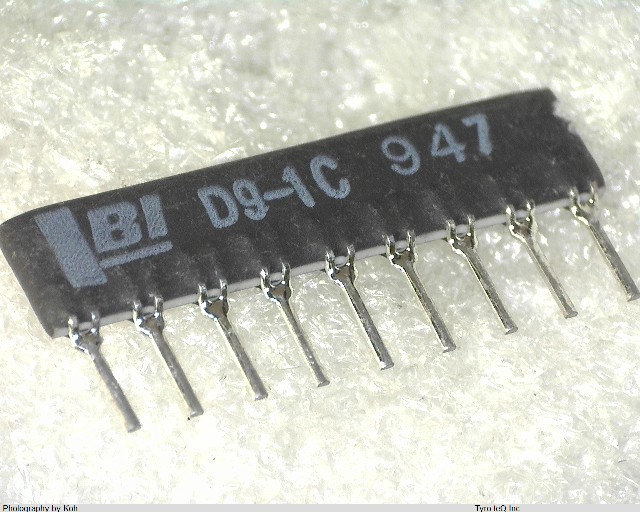

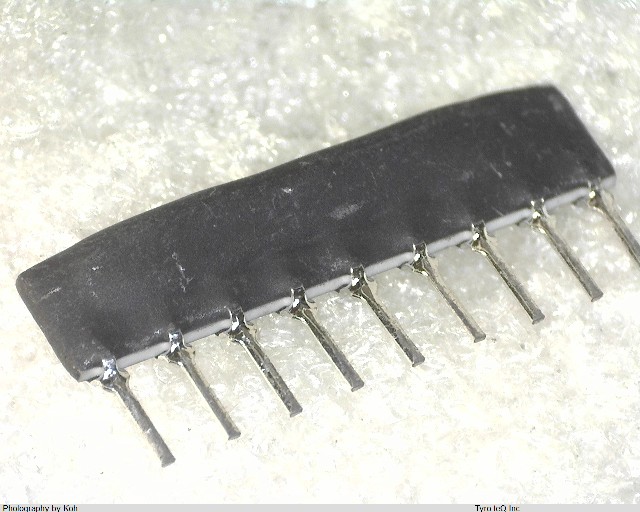

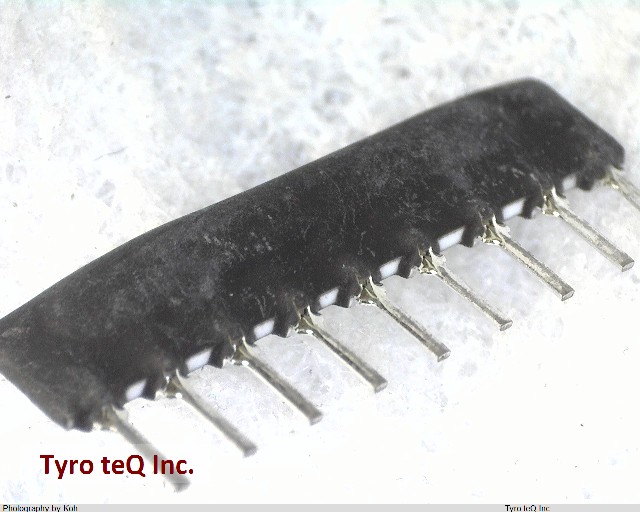

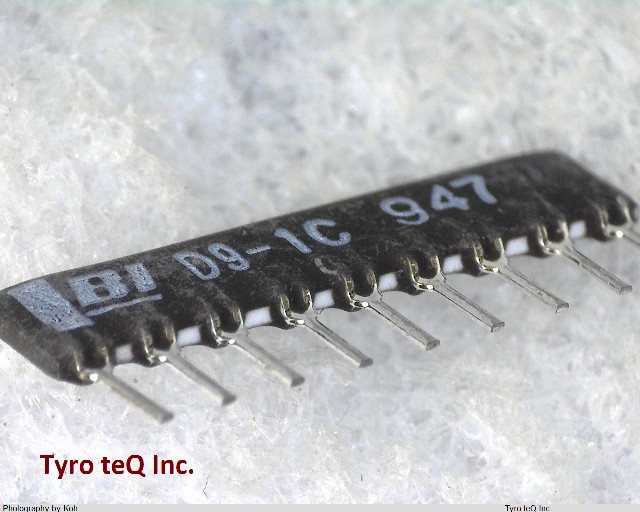

D9-1C
1
-
- 個
２営業日以内に回答いたします
D9-1C の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | D9-1C |
|---|---|
| メーカー | BI TECH |
| Configuration | COMMON CATHODE, 8 ELEMENTS |
| Diode Element Material | SILICON |
| Diode Type | RECTIFIER DIODE |
| Forward Voltage-Max (VF) | 1.5 V |
| JESD-30 Code | R-PSIP-T9 |
| JESD-609 Code | e1 |
| Number of Elements | 8 |
| Number of Terminals | 9 |
| Operating Temperature-Max | 80 Cel |
| Operating Temperature-Min | -55 Cel |
| Output Current-Max | 0.1 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Power Dissipation-Max | 0.2 W |
| Qualification Status | Not Qualified |
| Rep Pk Reverse Voltage-Max | 80 V |
| Reverse Current-Max | 1 uA |
| Reverse Recovery Time-Max | 0.004 us |
| Reverse Test Voltage | 70 V |
| Sub Category | Signal Diodes |
| Surface Mount | NO |
| Terminal Finish | TIN SILVER COPPER |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | SINGLE |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| 会社名称 | BI Technologies Corporation |
|---|---|
| 所在地 | 4200 Bonita Place Fullerton, CA 92835-1053 United States |
| URL | http://www.bitechnologies.com/ |
