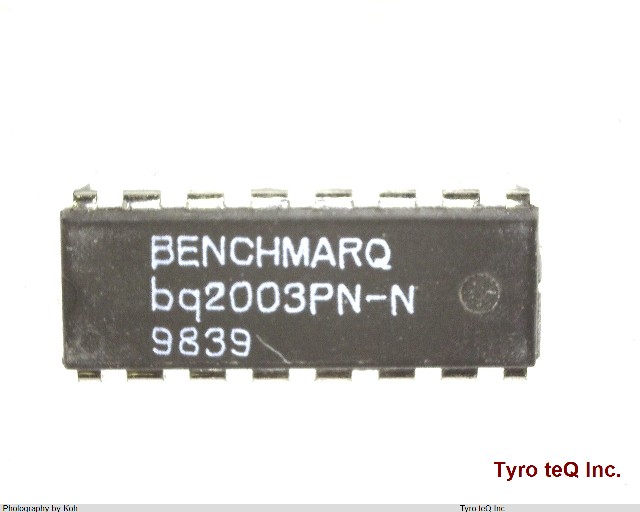

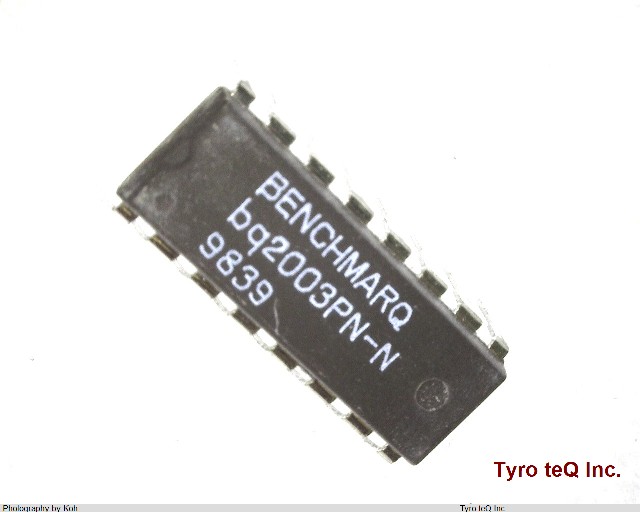

BQ2003PN-N
1
-
- 個
２営業日以内に回答いたします
BQ2003PN-N の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | BQ2003PN-N |
|---|---|
| メーカー | BENCHMARQ |
| Adjustable Threshold | NO |
| Analog IC - Other Type | BATTERY CHARGE CONTROLLER |
| Control Mode | CURRENT-MODE |
| Control Technique | HYSTERETIC CURRENT MODE |
| Input Voltage-Max | 5.5 V |
| Input Voltage-Min | 4.5 V |
| Input Voltage-Nom | 5 V |
| JESD-30 Code | R-PDIP-T16 |
| JESD-609 Code | e0 |
| Length | 19.3 mm |
| Number of Channels | 1 |
| Number of Functions | 1 |
| Number of Terminals | 16 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.08 mm |
| Supply Current-Max (Isup) | 2.2 mA |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Switcher Configuration | BUCK |
| Switching Frequency-Max | 300 kHz |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | NICKEL PALLADIUM GOLD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 7.62 mm |
| 会社名称 | Texas Instruments |
|---|---|
| 設立 | 2005 |
| 資本金 | USD 13.7 billion |
| 所在地 | Laura House Jengers Mead Billingshurst West Sussex RH14 9NZ,United Kingdom |
| URL | http://www.bmarq.co.uk/ |
