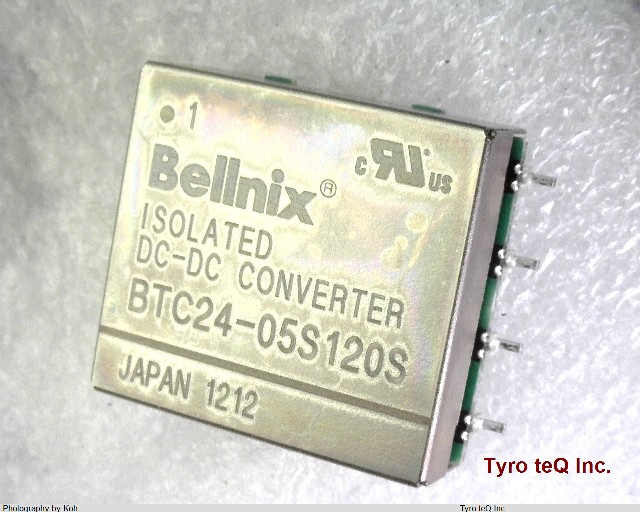

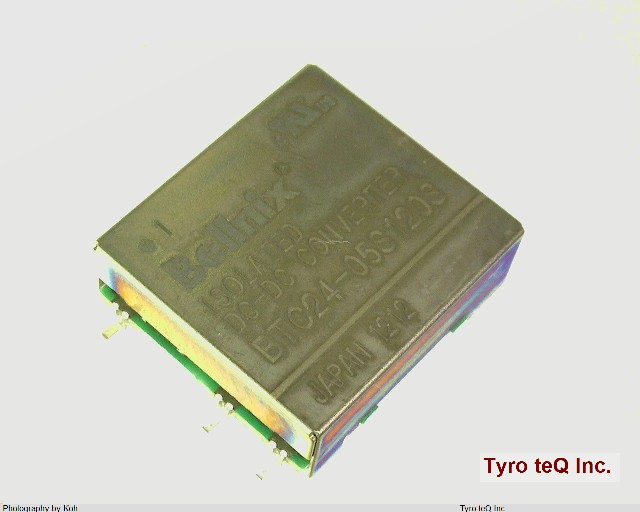

BTC24-05S120S

Name: BTC24-05S120S
Brand: BELLNIX
SKU: 120203780-0000-0000-0000

BTC24-05S120S - BELLNIX の商品詳細ページです。

２営業日以内に回答いたします

BTC24-05S120S の詳細情報

型番	BTC24-05S120S
メーカー	BELLNIX
Additional Feature	LG-MAX
Analog IC - Other Type	DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max	36 V
Input Voltage-Min	18 V
Input Voltage-Nom	24 V
JESD-30 Code	R-MDMA-G7
Length	23.7 mm
Number of Functions	1
Number of Outputs	1
Number of Terminals	7
Operating Temperature-Max	50 Cel
Operating Temperature-Min	-40 Cel
Output Voltage-Max	6 V
Output Voltage-Min	4.75 V
Output Voltage-Nom	5 V
Package Body Material	METAL
Package Shape	RECTANGULAR
Package Style	MICROELECTRONIC ASSEMBLY Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Seated Height-Max	8.8 mm
Surface Mount	YES
Technology	HYBRID
Temperature Grade	OTHER
Terminal Form	GULL WING
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Total Power Output-Max	6 W
Trim/Adjustable Output	YES V
Width	21.1 mm
