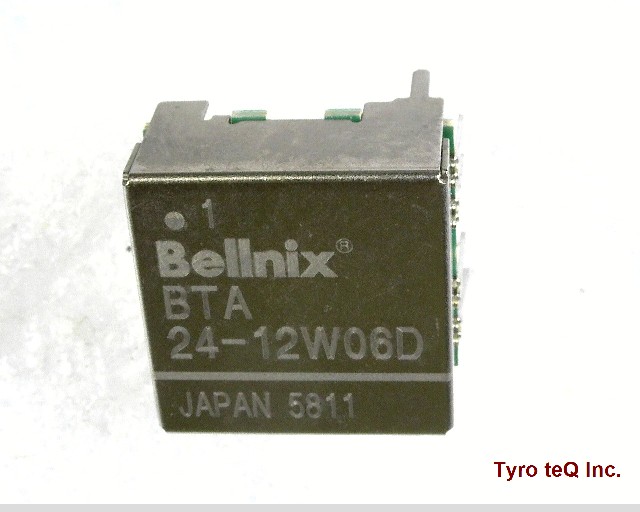

BTA24-12W06D

Name: BTA24-12W06D
Brand: BELLNIX
SKU: 400052065-0000-0000-0000

BTA24-12W06D - BELLNIX の商品詳細ページです。

２営業日以内に回答いたします

BTA24-12W06D の詳細情報

型番	BTA24-12W06D
メーカー	BELLNIX
Additional Feature	ADDITIONAL -12VDC ALSO AVAILABLE
Analog IC - Other Type	DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max	36 V
Input Voltage-Min	18 V
Input Voltage-Nom	24 V
JESD-30 Code	R-MDMA-T11
JESD-609 Code	e3
Length	17.3 mm
Number of Functions	1
Number of Outputs	2
Number of Terminals	11
Operating Temperature-Max	50 Cel
Operating Temperature-Min	-40 Cel
Output Voltage-Max	15 V
Output Voltage-Min	11.4 V
Output Voltage-Nom	12 V
Package Body Material	METAL
Package Shape	RECTANGULAR
Package Style	MICROELECTRONIC ASSEMBLY Meter
Surface Mount	NO
Technology	HYBRID
Temperature Grade	OTHER
Terminal Finish	TIN
Terminal Form	THROUGH-HOLE
Terminal Position	DUAL
Total Power Output-Max	1.44 W
Trim/Adjustable Output	YES V
