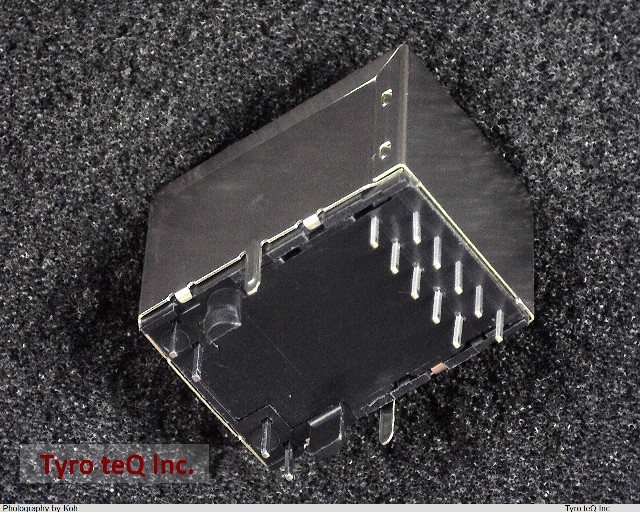

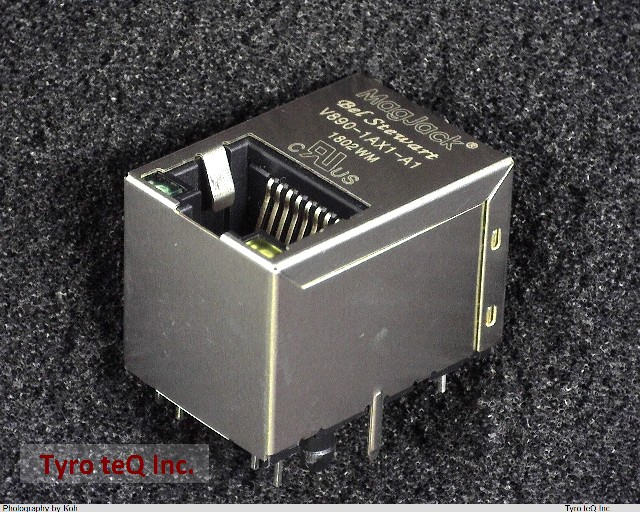

V890-1AX1-A1 データシート

Name: V890-1AX1-A1
Brand: BEL FUSE
SKU: 320009068-0000-0000-0000

V890-1AX1-A1 - BEL FUSE の商品詳細ページです。

２営業日以内に回答いたします

V890-1AX1-A1 の詳細情報

型番	V890-1AX1-A1
メーカー	BEL FUSE
データシート
Additional Feature	INBUILT TRANSFORMER, SHIELDED, STANDARD: RJ45
Board Mounting Option	PEG
Body Breadth	0.652 inch
Body Length	0.626 inch
Body/Shell Style	JACK
Connector Type	TELECOM AND DATACOM CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	TIN SILVER COPPER
Contact Gender	FEMALE
Contact Material	COPPER ALLOY
Contact Style	TELCOM, MODULAR
DIN Conformance	NO
Empty Shell	NO
Filter Feature	YES
IEC Conformance	NO
Insulator Material	POLYBUTYLENE TEREPHTHALATE/POLYETHYLENE
JESD-609 Code	e1
MIL Conformance	NO
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD AND PANEL
Number of Ports	1
Number of Rows Loaded	1
Option	GENERAL PURPOSE
PCB Contact Pattern	STAGGERED
Plating Thickness	30u inch
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	COPPER ALLOY
Sub Category	Telecom and Datacom Connectors
Terminal Length	0.125 inch
Terminal Pitch	2.54 mm
Termination Type	SOLDER
Total Number of Contacts	8
UL Flammability Code	94V-0
