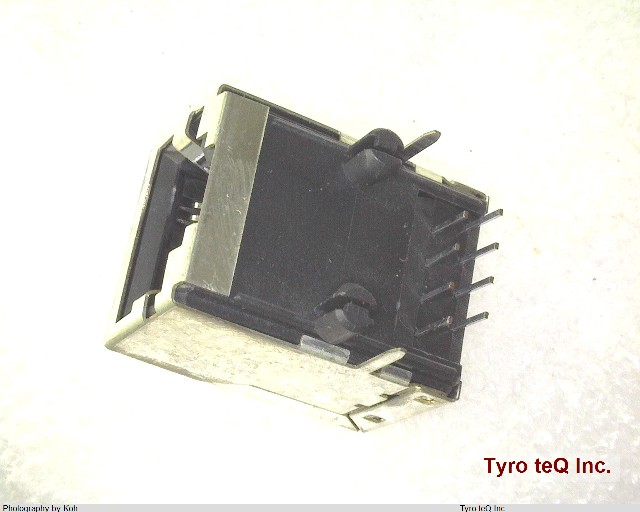

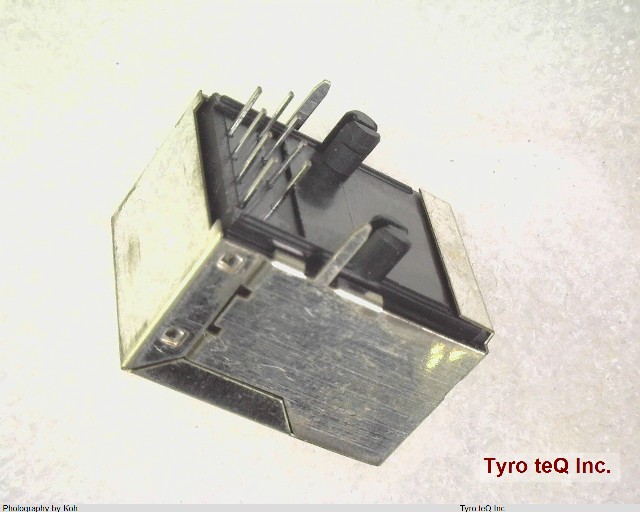

SS-7188S-A-NF-K1

Name: SS-7188S-A-NF-K1
Brand: BEL FUSE
SKU: 290454403-0000-0000-0000

SS-7188S-A-NF-K1 - BEL FUSE の商品詳細ページです。

２営業日以内に回答いたします

SS-7188S-A-NF-K1 の詳細情報

型番	SS-7188S-A-NF-K1
メーカー	BEL FUSE
Additional Feature	POLARIZED
Board Mounting Option	SPLIT BOARD LOCK
Body Breadth	0.55 inch
Body Depth	0.85 inch
Body Length	0.635 inch
Body/Shell Style	JACK
Connector Type	TELECOM AND DATACOM CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	NOT APPLICABLE
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Style	TELCOM, MODULAR
DIN Conformance	NO
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulator Material	POLYETHYLENE
MIL Conformance	NO
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of PCB Rows	2
Number of Ports	1
Number of Rows Loaded	1
Option	GENERAL PURPOSE
PCB Contact Pattern	STAGGERED
PCB Contact Row Spacing	2.54 mm
Plating Thickness	30u inch
Polarization Key	POLARIZED HOUSING
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	NICKEL/TIN
Shell Material	COPPER ALLOY
Sub Category	Telecom and Datacom Connectors
Terminal Length	0.125 inch
Terminal Pitch	2.54 mm
Termination Type	SOLDER
Total Number of Contacts	8
UL Flammability Code	94V-0
