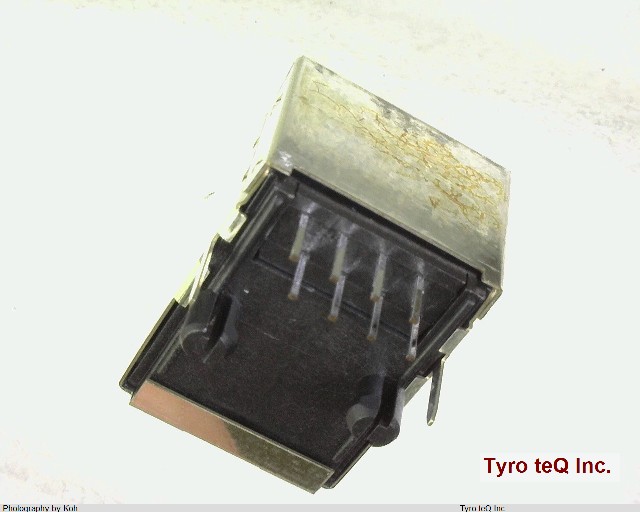

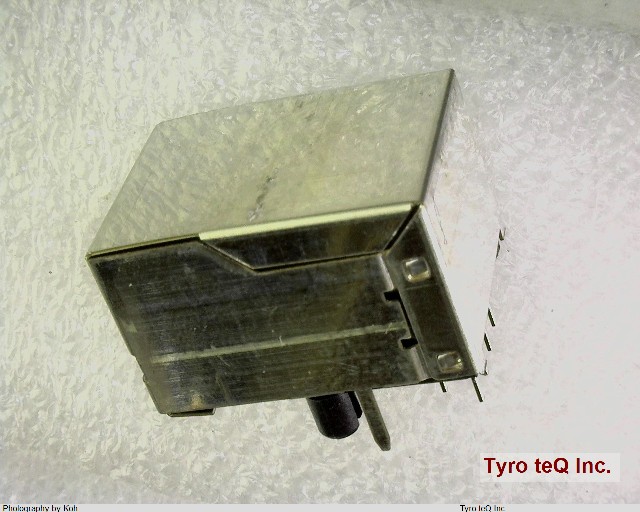

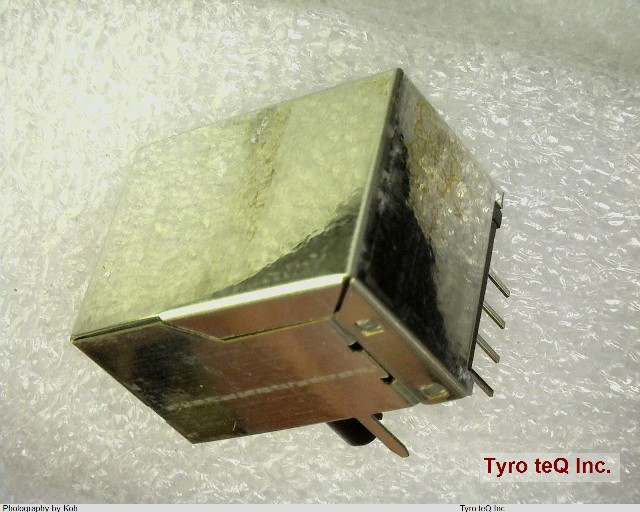

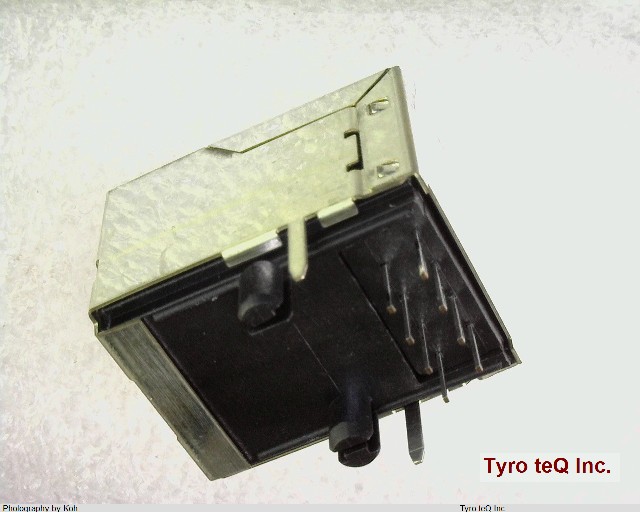

SS-6488S-A-NF

Name: SS-6488S-A-NF
Brand: BEL FUSE
SKU: 290454402-0000-0000-0000

SS-6488S-A-NF - BEL FUSE の商品詳細ページです。

２営業日以内に回答いたします

SS-6488S-A-NF の詳細情報

型番	SS-6488S-A-NF
メーカー	BEL FUSE
Additional Feature	LOW PROFILE, WITH KEYWAY
Board Mounting Option	COMPLIANT BOARDLOCK & PEGS
Body Breadth	0.055 inch
Body Depth	0.85 inch
Body Length	0.635 inch
Body/Shell Style	JACK
Connector Type	TELECOM AND DATACOM CONNECTOR
Contact Finish - Mating	AU
Contact Finish - Termination	NOT APPLICABLE
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	15 mohm
Contact Style	TELCOM, MODULAR
DIN Conformance	NO
Dielectric Withstanding Voltage	1000VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	500000000 ohm
Insulator Material	GLASS FILLED POLYETHYLENE
MIL Conformance	NO
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Option 2	FLANGELESS
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of PCB Rows	2
Number of Ports	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-20 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	STAGGERED
PCB Contact Row Spacing	2.54 mm
Plating Thickness	30 inch
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	1.5 A
Reference Standard	CSA, UL
Reliability	COMMERCIAL
Shell Finish	NICKEL/TIN
Shell Material	BRASS
Sub Category	Telecom and Datacom Connectors
Terminal Length	0.125 inch
Terminal Pitch	2.54 mm
Termination Type	SOLDER
Total Number of Contacts	8
UL Flammability Code	94V-0
