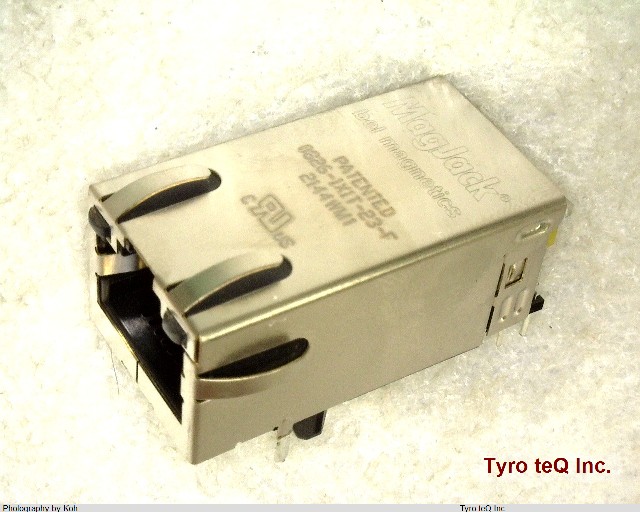

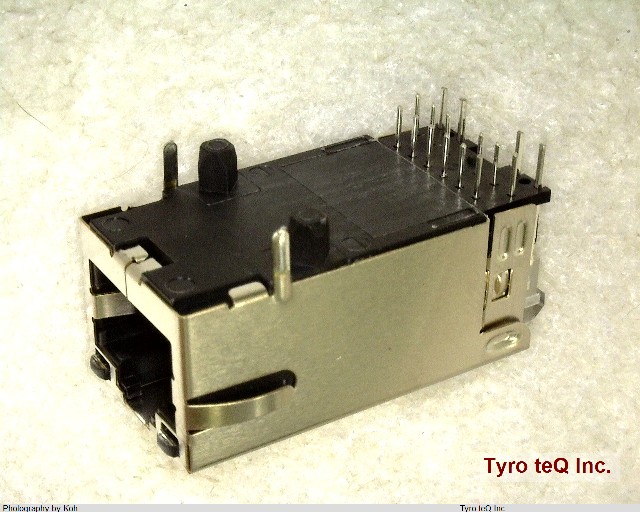

0826-1X1T-23-F データシート

Name: 0826-1X1T-23-F
Brand: BEL FUSE
SKU: 10144368-0000-0000-0000

0826-1X1T-23-F - BEL FUSE の商品詳細ページです。

２営業日以内に回答いたします

0826-1X1T-23-F の詳細情報

型番	0826-1X1T-23-F
メーカー	BEL FUSE
データシート
Additional Feature	INBUILT TRANSFORMER, SHIELDED
Board Mounting Option	PEG
Body Breadth	0.536 inch
Body Depth	1.29 inch
Body Length	0.642 inch
Body/Shell Style	JACK
Connector Type	TELECOM AND DATACOM CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	TIN SILVER COPPER
Contact Gender	FEMALE
Contact Material	COPPER ALLOY
Contact Style	TELCOM, MODULAR
DIN Conformance	NO
Empty Shell	NO
Filter Feature	YES
IEC Conformance	NO
Insulator Material	POLYAMIDE46/POLYETHYLENE
JESD-609 Code	e1
MIL Conformance	NO
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD AND PANEL
Number of Ports	1
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	STAGGERED
Plating Thickness	50u inch
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	NICKEL/TIN
Shell Material	COPPER ALLOY
Sub Category	Telecom and Datacom Connectors
Terminal Length	0.125 inch
Terminal Pitch	2.54 mm
Termination Type	SOLDER
Total Number of Contacts	8
UL Flammability Code	94V-0
