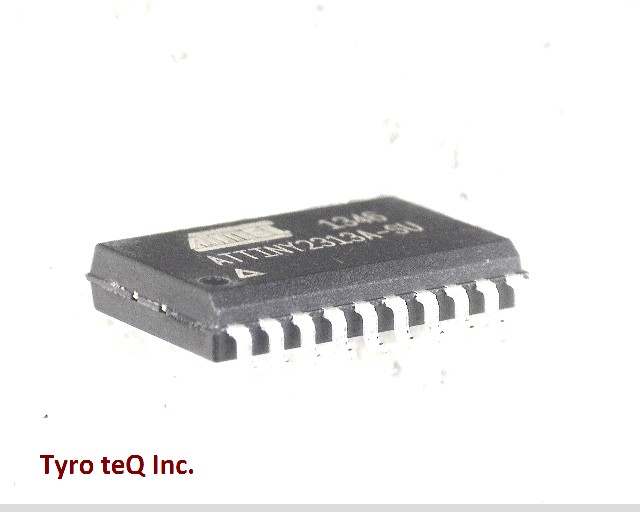

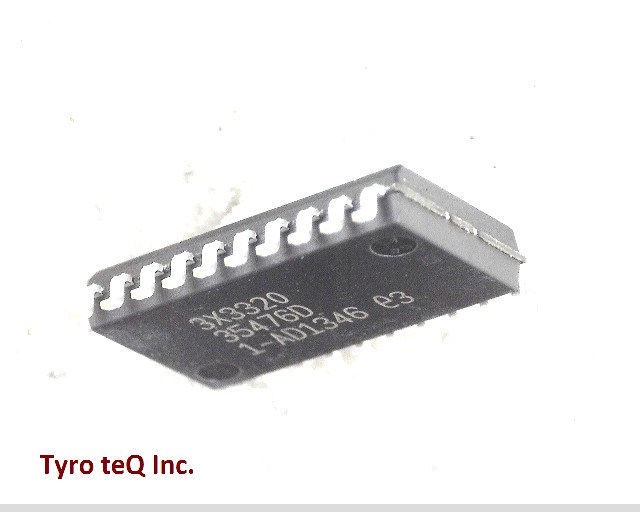

ATTINY2313A-SUR

Name: ATTINY2313A-SUR
Brand: ATMEL
SKU: 110186401-0000-0000-0000

ATTINY2313A-SUR - ATMEL の商品詳細ページです。

２営業日以内に回答いたします

ATTINY2313A-SUR の詳細情報

型番	ATTINY2313A-SUR
メーカー	ATMEL
ADC Channels	NO
Additional Feature	IT ALSO OPERATES AT 1.8 V AT 4 MHZ AND 2.7V AT 10 MHZ
Address Bus Width	0
Bit Size	8
Boundary Scan	YES
CPU Family	AVR RISC
Clock Frequency-Max	8 MHz
Connectivity	SPI, USART, USI
DAC Channels	NO
DMA Channels	NO
Data EEPROM Size	128
External Data Bus Width	0
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	R-PDSO-G20
JESD-609 Code	e3
Length	12.8 mm
Low Power Mode	YES
Moisture Sensitivity Level	1
Number of I/O Lines	18
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP20,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Power Supplies	2/5 V
Qualification Status	Not Qualified
RAM (bytes)	128
ROM (words)	1024
ROM Programmability	FLASH
Seated Height-Max	2.65 mm
Speed	20 rpm
Sub Category	Microcontrollers
Supply Current-Max	7 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Width	7.5 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
