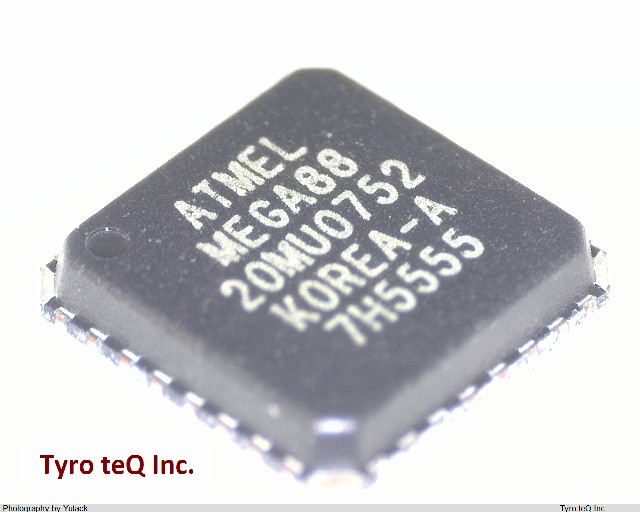

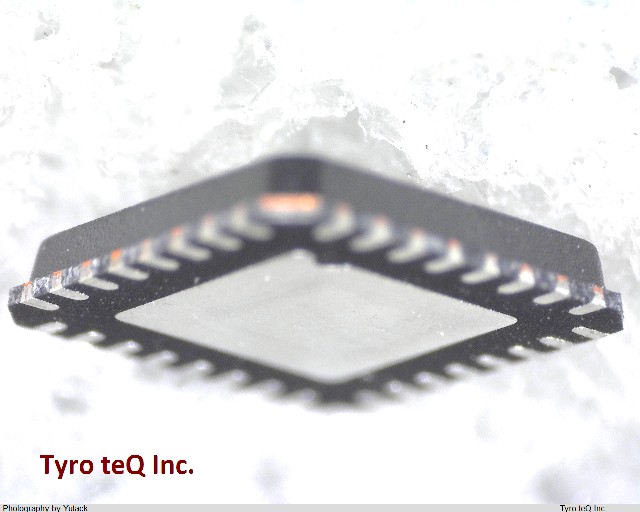

ATMEGA88-20MU データシート

Name: ATMEGA88-20MU
Brand: ATMEL
SKU: 110056597-0000-0000-0000

ATMEGA88-20MU - ATMEL の商品詳細ページです。

２営業日以内に回答いたします

ATMEGA88-20MU の詳細情報

型番	ATMEGA88-20MU
メーカー	ATMEL
データシート
A/D Converters	8-Ch 10-Bit
ADC Channels	YES
Additional Feature	OPERATES AT 2.7 V MINIMUM SUPPLY AT 10 MHZ
Address Bus Width	0
Bit Size	8
Boundary Scan	NO
CPU Family	AVR RISC
Clock Frequency-Max	20 MHz
Connectivity	I2C, SPI(2), USART
DAC Channels	NO
DMA Channels	NO
Data EEPROM Size	512
External Data Bus Width	0
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	S-PQCC-N32
JESD-609 Code	e3
Length	5 mm
Moisture Sensitivity Level	1
Number of I/O Lines	23
Number of Terminals	32
On Chip Program ROM Width	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	HVQCCN
Package Equivalence Code	LCC32,.2SQ,20
Package Shape	SQUARE
Package Style	CHIP CARRIER Meter
Peak Reflow Temperature (Cel)	260
Peripherals	ANALOG COMPARATOR, POR, PWM(6), TIMER(3), WDT
Power Supplies	3/5 V
Qualification Status	Not Qualified
RAM (bytes)	1024
ROM (words)	4096
ROM Programmability	FLASH
Seated Height-Max	1 mm
Speed	10 rpm
Sub Category	Microcontrollers
Supply Current-Max	12 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	2.7 V
Supply Voltage-Nom	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Position	QUAD
