ATMEGA328P-AU データシート

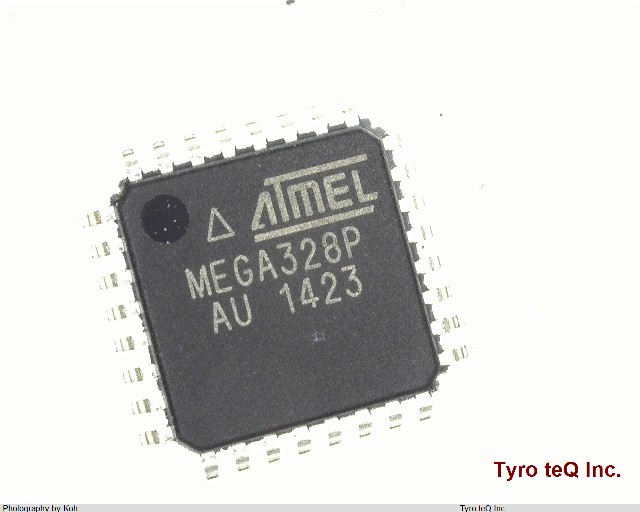

Name: ATMEGA328P-AU
Brand: ATMEL
SKU: 110185114-0000-0000-0000

ATMEGA328P-AU - ATMEL の商品詳細ページです。

２営業日以内に回答いたします

ATMEGA328P-AU の詳細情報

型番	ATMEGA328P-AU
メーカー	ATMEL
データシート
A/D Converters	8-Ch 10-Bit
ADC Channels	YES
Additional Feature	ALSO OPERATES AT 1.8V AT 4MHZ AND 2.7V AT 10 MHZ MINIMUM SUPPLY
Address Bus Width	0
Bit Size	8
Boundary Scan	NO
CPU Family	AVR RISC
Clock Frequency-Max	20 MHz
Connectivity	SPI, TWI, USART
DAC Channels	NO
DMA Channels	NO
Data EEPROM Size	1K
External Data Bus Width	0
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	S-PQFP-G32
JESD-609 Code	e3
Length	7 mm
Moisture Sensitivity Level	1
Number of I/O Lines	23
Number of Terminals	32
On Chip Program ROM Width	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	QFP
Package Equivalence Code	QFP32,.35SQ,32
Package Shape	SQUARE
Package Style	FLATPACK Meter
Peak Reflow Temperature (Cel)	260
Peripherals	BOD, COMPARATOR, POR, PWM(6), RTC, TIMER(3), WDT
Power Supplies	2/5 V
Qualification Status	Not Qualified
RAM (bytes)	2048
ROM (words)	16384
ROM Programmability	FLASH
Seated Height-Max	1.2 mm
Speed	20 rpm
Sub Category	Microcontrollers
Supply Current-Max	2.7 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.8 mm
Terminal Position	QUAD
