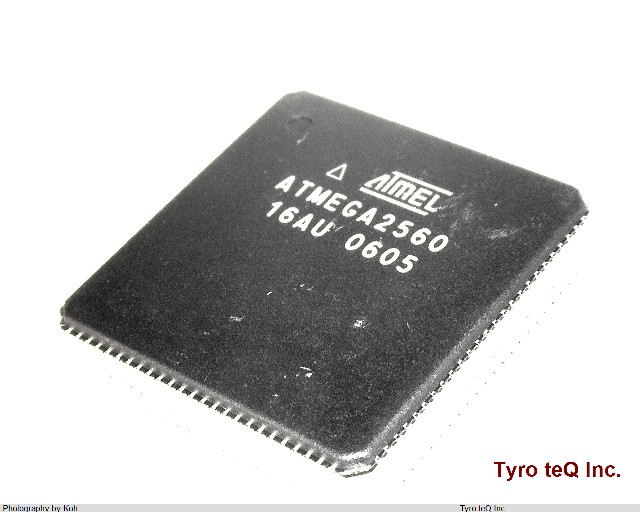

ATMEGA256016AU データシート

Name: ATMEGA256016AU
Brand: ATMEL
SKU: 110056365-0000-0000-0000

ATMEGA256016AU - ATMEL の商品詳細ページです。

２営業日以内に回答いたします

ATMEGA256016AU の詳細情報

型番	ATMEGA256016AU
メーカー	ATMEL
データシート
A/D Converters	16-Ch 10-Bit
ADC Channels	YES
Additional Feature	ALSO OPERATES AT 2.7V MINIMUM SUPPLY AT 8 MHZ
Address Bus Width	16
Bit Size	8
Boundary Scan	YES
CPU Family	AVR RISC
Clock Frequency-Max	16 MHz
Connectivity	I2C, SPI, USART(4)
DAC Channels	NO
DMA Channels	NO
Data EEPROM Size	4K
External Data Bus Width	8
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	S-PQFP-G100
JESD-609 Code	e3
Length	14 mm
Moisture Sensitivity Level	1
Number of I/O Lines	86
Number of Terminals	100
On Chip Program ROM Width	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	TFQFP
Package Equivalence Code	TQFP100,.63SQ
Package Shape	SQUARE
Package Style	FLATPACK, THIN PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Peripherals	BOD, COMPARATOR, POR, PWM(12), RTC, TIMER(6), WDT
Power Supplies	5 V
Qualification Status	Not Qualified
RAM (bytes)	8192
ROM (words)	131072
ROM Programmability	FLASH
Seated Height-Max	1.2 mm
Speed	16 rpm
Sub Category	Microcontrollers
Supply Current-Max	14 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
