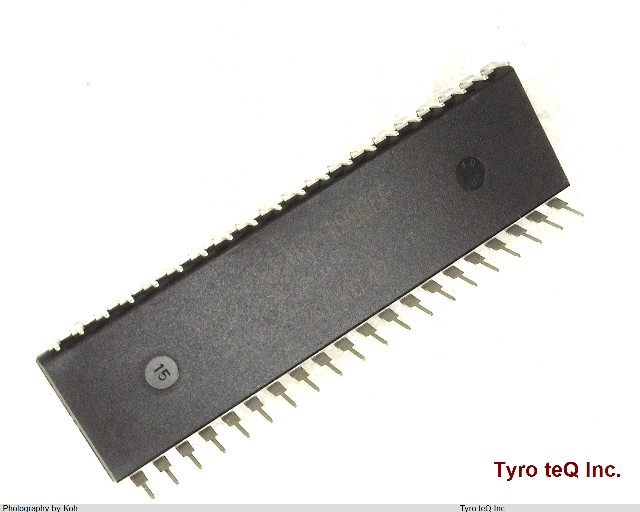

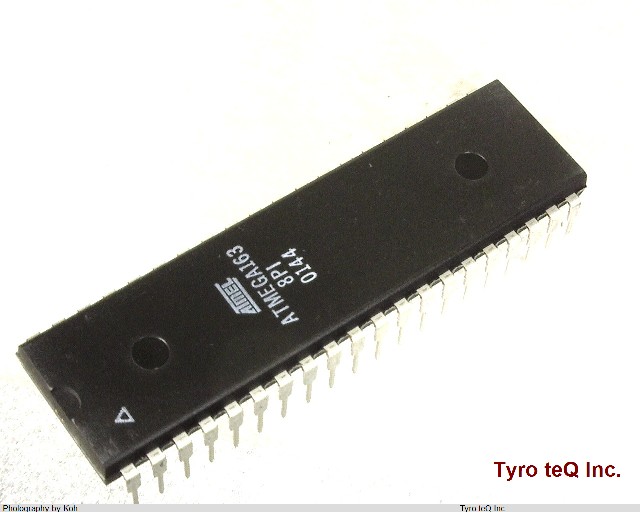

ATMEGA163-8PI
データシート
1
-
- 個
２営業日以内に回答いたします
ATMEGA163-8PI の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | ATMEGA163-8PI |
|---|---|
| メーカー | ATMEL |
| データシート |  |
| ADC Channels | YES |
| Address Bus Width | 0 |
| Bit Size | 8 |
| CPU Family | AVR RISC |
| Clock Frequency-Max | 8 MHz |
| DAC Channels | NO |
| DMA Channels | NO |
| External Data Bus Width | 0 |
| JESD-30 Code | R-PDIP-T40 |
| JESD-609 Code | e0 |
| Length | 52.325 mm |
| Number of I/O Lines | 32 |
| Number of Terminals | 40 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |
| PWM Channels | YES |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP40,.6 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Power Supplies | 5 V |
| Qualification Status | Not Qualified |
| RAM (bytes) | 1024 |
| ROM (words) | 8192 |
| ROM Programmability | FLASH |
| Seated Height-Max | 4.83 mm |
| Speed | 8 rpm |
| Sub Category | Microcontrollers |
| Supply Voltage-Max | 5.5 V |
| Supply Voltage-Min | 4 V |
| Supply Voltage-Nom | 5 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 15.24 mm |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
| 会社名称 | Atmel Corporation |
|---|---|
| 設立 | 1984 |
| 所在地 | 1600 Technology Drive San Jose, 95110 United States |
| URL | http://www.atmel.com/ |
