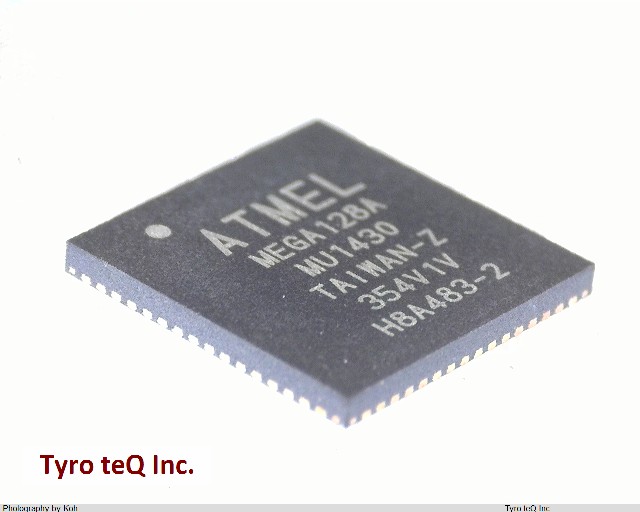

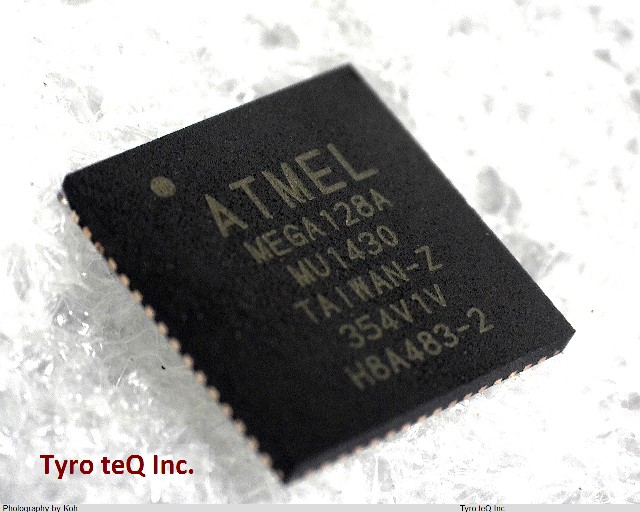

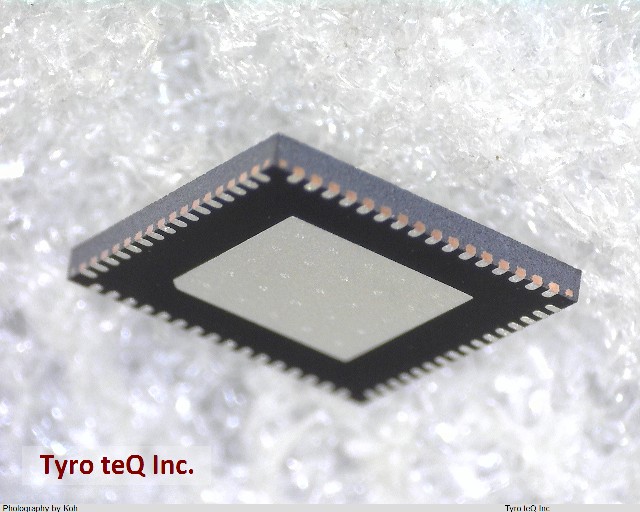

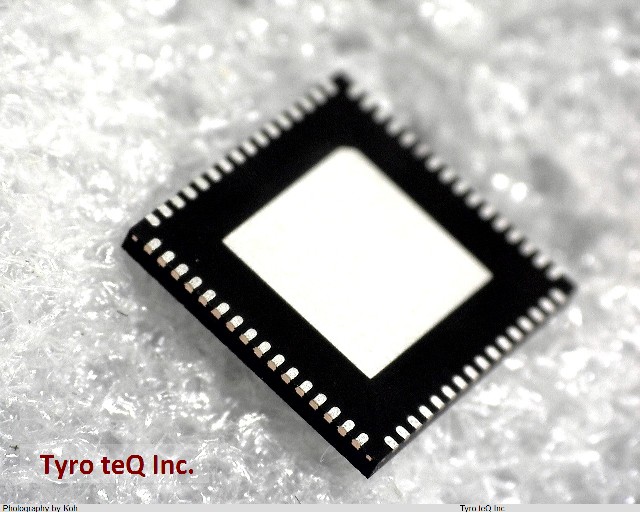

ATMEGA128A-MU

Name: ATMEGA128A-MU
Brand: ATMEL
SKU: 110245794-0000-0000-0000

ATMEGA128A-MU - ATMEL の商品詳細ページです。

２営業日以内に回答いたします

ATMEGA128A-MU の詳細情報

型番	ATMEGA128A-MU
メーカー	ATMEL
A/D Converters	8-Ch 10-Bit
ADC Channels	YES
Additional Feature	IT ALSO OPERATES 8MHZ AT MINI 2.7V
Address Bus Width	16
Bit Size	8
Boundary Scan	YES
CPU Family	AVR RISC
Clock Frequency-Max	16 MHz
Connectivity	I2C, SPI, USART(2)
DAC Channels	NO
DMA Channels	NO
Data EEPROM Size	4K
External Data Bus Width	8
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	S-PQCC-N64
Length	9 mm
Low Power Mode	YES
Number of External Interrupts	4
Number of I/O Lines	53
Number of Serial I/Os	6
Number of Terminals	64
Number of Timers	4
On Chip Program ROM Width	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	HVQCCN
Package Equivalence Code	LCC64,.35SQ,20
Package Shape	SQUARE
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peripherals	BOD, COMPARATOR, POR, PWM(6), RTC, TIMER(4), WDT
Power Supplies	3/5 V
Qualification Status	Not Qualified
RAM (bytes)	4096
ROM (words)	65536
ROM Programmability	FLASH
Seated Height-Max	1 mm
Speed	16 rpm
Sub Category	Microcontrollers
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Position	QUAD
