ATMEGA103L-4AC データシート

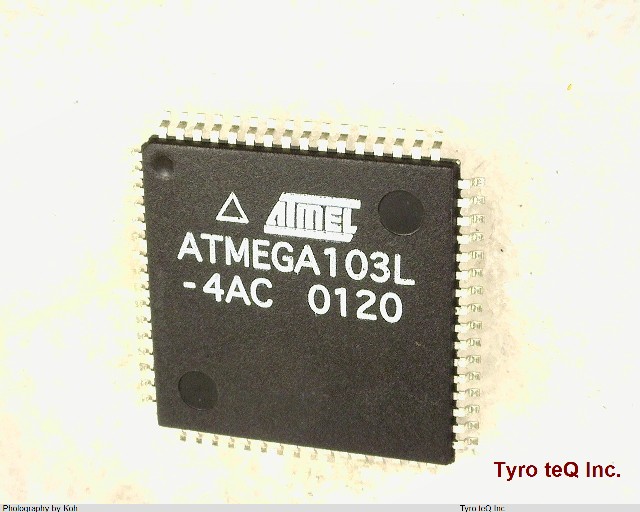

Name: ATMEGA103L-4AC
Brand: ATMEL
SKU: 110093004-0000-0000-0000

ATMEGA103L-4AC - ATMEL の商品詳細ページです。

２営業日以内に回答いたします

ATMEGA103L-4AC の詳細情報

型番	ATMEGA103L-4AC
メーカー	ATMEL
データシート
A/D Converters	8-Ch 10-Bit
ADC Channels	YES
Additional Feature	4K BYTES OF EEPROM
Address Bus Width	16
Bit Size	8
Boundary Scan	NO
CPU Family	AVR
Clock Frequency-Max	4 MHz
Connectivity	SPI, UART
DAC Channels	NO
DMA Channels	NO
Data EEPROM Size	4096
External Data Bus Width	8
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	S-PQFP-G64
JESD-609 Code	e0
Length	14 mm
Low Power Mode	YES
Number of External Interrupts	8
Number of I/O Lines	32
Number of Terminals	64
Number of Timers	3
On Chip Data RAM Width	8
On Chip Program ROM Width	16
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	TQFP
Package Equivalence Code	TQFP64,.63SQ,32
Package Shape	SQUARE
Package Style	FLATPACK, THIN PROFILE Meter
Peripherals	ANALOG COMPARATOR, BOD, POR, PWM, RTC, TIMER(3), WDT
RAM (bytes)	4096
ROM (words)	16384
ROM Programmability	FLASH
Seated Height-Max	1.2 mm
Speed	4 rpm
Supply Current-Max	3 mA
Supply Voltage-Max	3.6 V
Supply Voltage-Min	2.7 V
Supply Voltage-Nom	3 V
Surface Mount	YES
Technology	CMOS
Terminal Form	GULL WING
Terminal Pitch	0.8 mm
Terminal Position	QUAD
Width	14 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
