ATF1504ASV-15AU100 データシート

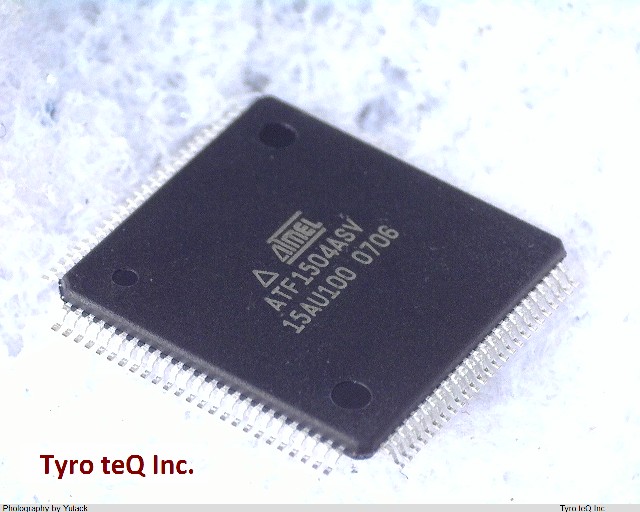

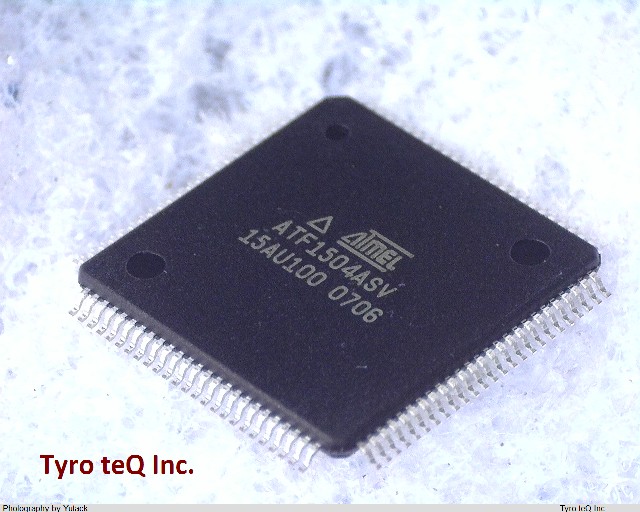

Name: ATF1504ASV-15AU100
Brand: ATMEL
SKU: 110055656-0000-0000-0000

ATF1504ASV-15AU100 - ATMEL の商品詳細ページです。

２営業日以内に回答いたします

ATF1504ASV-15AU100 の詳細情報

型番	ATF1504ASV-15AU100
メーカー	ATMEL
データシート
Additional Feature	YES
Clock Frequency-Max	100 MHz
In-System Programmable	YES
JESD-30 Code	S-PQFP-G100
JESD-609 Code	e3
JTAG BST	YES
Length	14 mm
Moisture Sensitivity Level	3
Number of Dedicated Inputs	0
Number of I/O Lines	64
Number of Macro Cells	64
Number of Terminals	100
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Organization	0 DEDICATED INPUTS, 64 I/O
Output Function	MACROCELL
Package Body Material	PLASTIC/EPOXY
Package Code	TFQFP
Package Equivalence Code	TQFP100,.63SQ
Package Shape	SQUARE
Package Style	FLATPACK, THIN PROFILE, FINE PITCH Meter
Packing Method	TRAY
Peak Reflow Temperature (Cel)	260
Power Supplies	2.5/3.3,3.3 V
Programmable Logic Type	EE PLD
Propagation Delay	15 ns
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sub Category	Programmable Logic Devices
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	40
Width	14 mm
