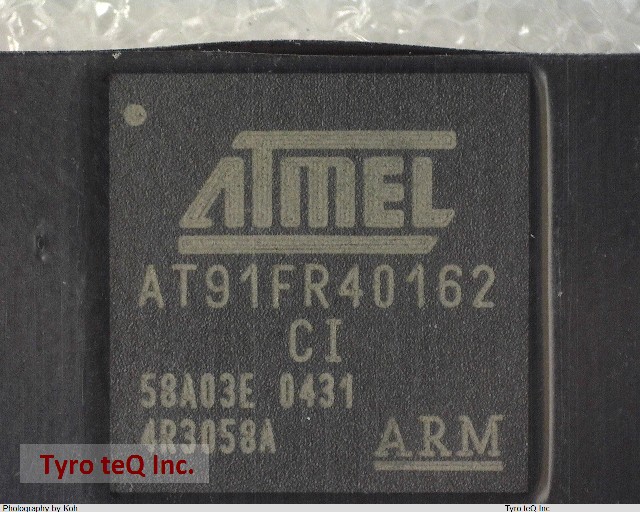

AT91FR40162CI データシート

Name: AT91FR40162CI
Brand: ATMEL
SKU: 110054483-0000-0000-0000

AT91FR40162CI - ATMEL の商品詳細ページです。

２営業日以内に回答いたします

AT91FR40162CI の詳細情報

型番	AT91FR40162CI
メーカー	ATMEL
データシート
ADC Channels	NO
Address Bus Width	24
Bit Size	32
CPU Family	ARM7
DAC Channels	NO
DMA Channels	NO
External Data Bus Width	16
JESD-30 Code	S-PBGA-B121
JESD-609 Code	e0
Length	10 mm
Number of I/O Lines	32
Number of Terminals	121
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	NO
Package Body Material	PLASTIC/EPOXY
Package Code	TFBGA
Package Equivalence Code	BGA121,11X11,32
Package Shape	SQUARE
Package Style	GRID ARRAY, THIN PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	1.8,3.3 V
Qualification Status	Not Qualified
RAM (bytes)	262144
ROM (words)	1048576
ROM Programmability	FLASH
Seated Height-Max	1.2 mm
Speed	70 rpm
Sub Category	Microcontrollers
Supply Voltage-Max	1.95 V
Supply Voltage-Min	1.65 V
Supply Voltage-Nom	1.8 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	BALL
Terminal Pitch	0.8 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	30
Width	10 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
