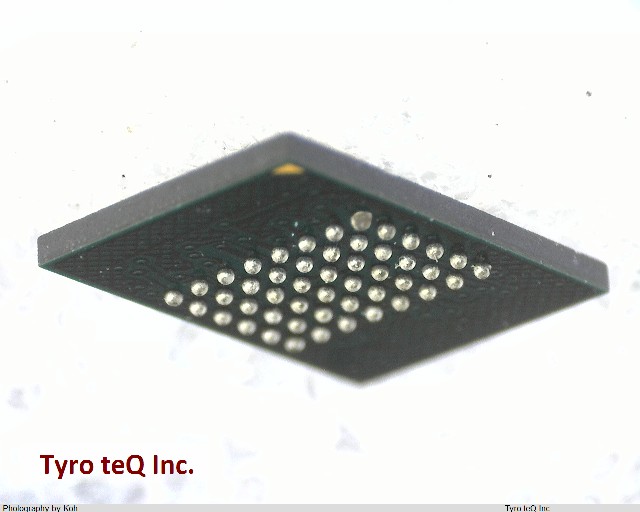

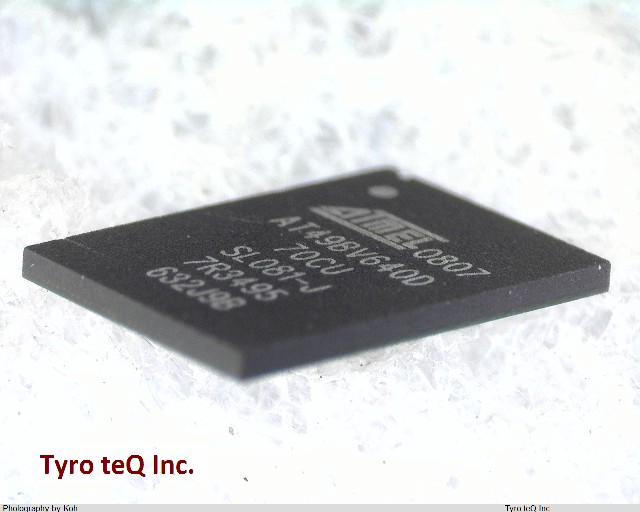

AT49BV640D70CU データシート

Name: AT49BV640D70CU
Brand: ATMEL
SKU: 110053356-0000-0000-0000

AT49BV640D70CU - ATMEL の商品詳細ページです。

２営業日以内に回答いたします

AT49BV640D70CU の詳細情報

型番	AT49BV640D70CU
メーカー	ATMEL
データシート
Access Time-Max	70 ns
Boot Block	BOTTOM
Command User Interface	YES
Common Flash Interface	YES
Data Polling	YES
JESD-30 Code	R-PBGA-B48
JESD-609 Code	e1
Length	10 mm
Memory Density	67108864 bit
Memory IC Type	FLASH
Memory Width	16
Moisture Sensitivity Level	3
Number of Functions	1
Number of Sectors/Size	8,127
Number of Terminals	48
Number of Words	4194304 words
Number of Words Code	4M
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Organization	4MX16
Package Body Material	PLASTIC/EPOXY
Package Code	VFBGA
Package Equivalence Code	BGA48,6X8,32
Package Shape	RECTANGULAR
Package Style	GRID ARRAY, VERY THIN PROFILE, FINE PITCH Meter
Page Size	4 words
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	260
Power Supplies	3/3.3 V
Programming Voltage	3 V
Qualification Status	Not Qualified
Seated Height-Max	1 mm
Sector Size	4K,32K Words
Standby Current-Max	2.5E-5 Amp
Sub Category	Flash Memories
Supply Current-Max	0.025 mA
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	2.65 V
Supply Voltage-Nom (Vsup)	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN SILVER COPPER
Terminal Form	BALL
Terminal Pitch	0.75 mm
Terminal Position	BOTTOM
Toggle Bit	YES
Type	NOR TYPE
Width	7 mm
