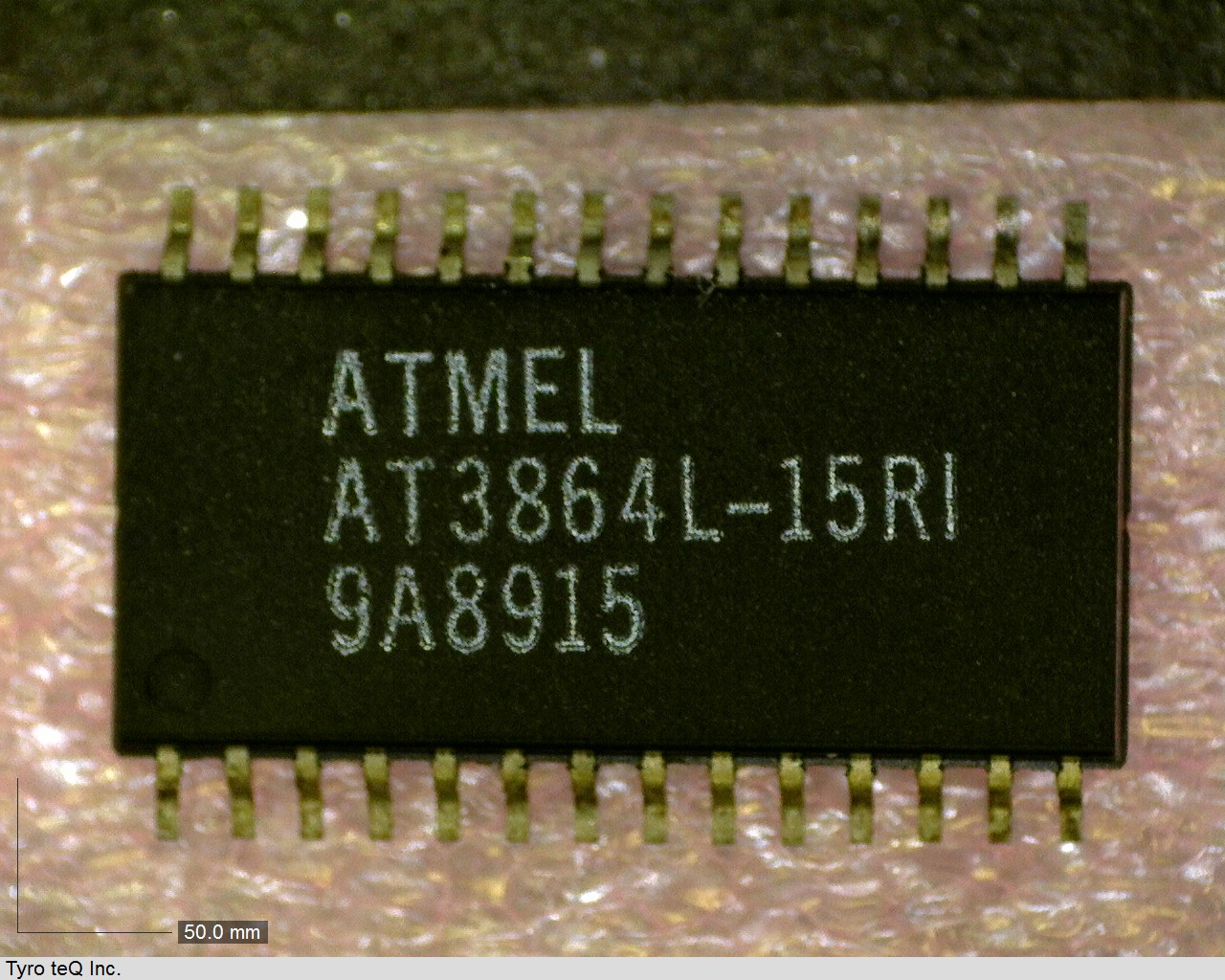

AT3864L-15RI
1
-
- 個
２営業日以内に回答いたします
AT3864L-15RI の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | AT3864L-15RI |
|---|---|
| メーカー | ATMEL |
| Access Time-Max | 150 ns |
| Additional Feature | POWER-DOWN |
| I/O Type | COMMON |
| JESD-30 Code | R-PDSO-G28 |
| JESD-609 Code | e0 |
| Length | 18.25 mm |
| Memory Density | 65536 bit |
| Memory IC Type | STANDARD SRAM |
| Memory Width | 8 |
| Moisture Sensitivity Level | 2 |
| Number of Functions | 1 |
| Number of Ports | 1 |
| Number of Terminals | 28 |
| Number of Words | 8192 words |
| Number of Words Code | 8K |
| Operating Mode | ASYNCHRONOUS |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |
| Organization | 8KX8 |
| Output Characteristics | 3-STATE |
| Output Enable | YES |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP28,.5 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE Meter |
| Parallel/Serial | PARALLEL |
| Peak Reflow Temperature (Cel) | 225 |
| Power Supplies | 5 V |
| Qualification Status | Not Qualified |
| Seated Height-Max | 2.79 mm |
| Standby Current-Max | 5.0E-5 Amp |
| Standby Voltage-Min | 2 V |
| Sub Category | SRAMs |
| Supply Current-Max | 0.035 mA |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Width | 8.74 mm |
| 会社名称 | Atmel Corporation |
|---|---|
| 設立 | 1984 |
| 所在地 | 1600 Technology Drive San Jose, 95110 United States |
| URL | http://www.atmel.com/ |
