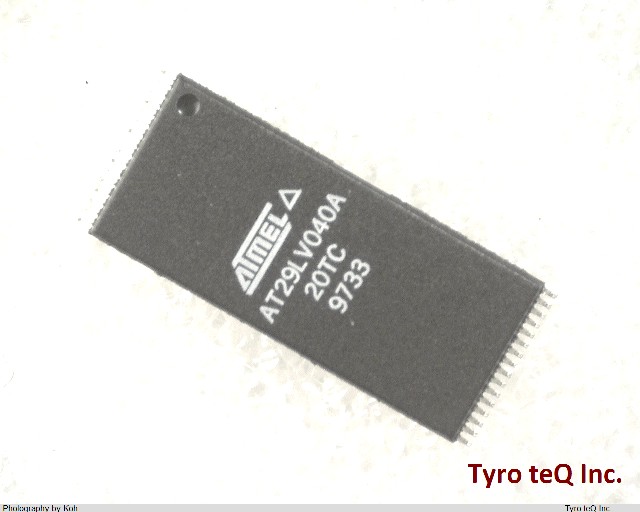

AT29LV040A-20TC データシート

Name: AT29LV040A-20TC
Brand: ATMEL
SKU: 110004391-0000-0000-0000

AT29LV040A-20TC - ATMEL の商品詳細ページです。

２営業日以内に回答いたします

AT29LV040A-20TC の詳細情報

型番	AT29LV040A-20TC
メーカー	ATMEL
データシート
Access Time-Max	200 ns
Additional Feature	AUTOMATIC WRITE
Boot Block	BOTTOM/TOP
Command User Interface	NO
Data Polling	YES
Endurance	10000 Write/Erase Cycles
JESD-30 Code	R-PDSO-G32
JESD-609 Code	e0
Length	18.4 mm
Memory Density	4194304 bit
Memory IC Type	FLASH
Memory Width	8
Moisture Sensitivity Level	3
Number of Functions	1
Number of Sectors/Size	2K
Number of Terminals	32
Number of Words	524288 words
Number of Words Code	512K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	512KX8
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	TSOP1
Package Equivalence Code	TSSOP32,.8,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE Meter
Page Size	256 words
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	240
Power Supplies	3.3 V
Programming Voltage	3 V
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sector Size	256 Words
Standby Current-Max	4.0E-5 Amp
Sub Category	Flash Memories
Supply Current-Max	0.015 mA
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Toggle Bit	YES
