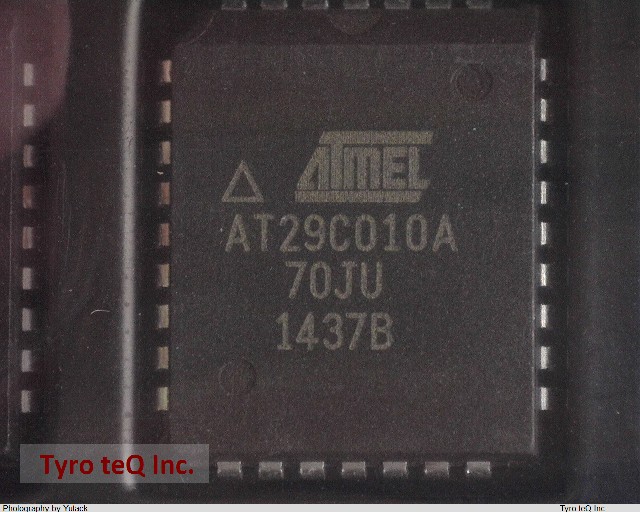

AT29C010A-70JU データシート

Name: AT29C010A-70JU
Brand: ATMEL
SKU: 110007883-0000-0000-0000

AT29C010A-70JU - ATMEL の商品詳細ページです。

２営業日以内に回答いたします

AT29C010A-70JU の詳細情報

型番	AT29C010A-70JU
メーカー	ATMEL
データシート
Access Time-Max	70 ns
Boot Block	BOTTOM/TOP
Command User Interface	NO
Data Polling	YES
JESD-30 Code	R-PQCC-J32
JESD-609 Code	e3
Length	13.97 mm
Memory Density	1048576 bit
Memory IC Type	FLASH
Memory Width	8
Moisture Sensitivity Level	2
Number of Functions	1
Number of Sectors/Size	1,1,1
Number of Terminals	32
Number of Words	131072 words
Number of Words Code	128K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Organization	128KX8
Package Body Material	PLASTIC/EPOXY
Package Code	QCCJ
Package Equivalence Code	LDCC32,.5X.6
Package Shape	RECTANGULAR
Package Style	CHIP CARRIER Meter
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	245
Power Supplies	5 V
Programming Voltage	5 V
Qualification Status	Not Qualified
Seated Height-Max	3.556 mm
Sector Size	8K,112K,8K Words
Standby Current-Max	3.0E-5 Amp
Sub Category	Flash Memories
Supply Current-Max	0.05 mA
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	4.75 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	J BEND
Terminal Pitch	1.27 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	40
Toggle Bit	YES
Type	NOR TYPE
Width	11.43 mm
Write Cycle Time-Max (tWC)	10 ms
