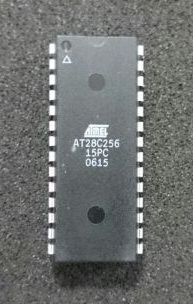

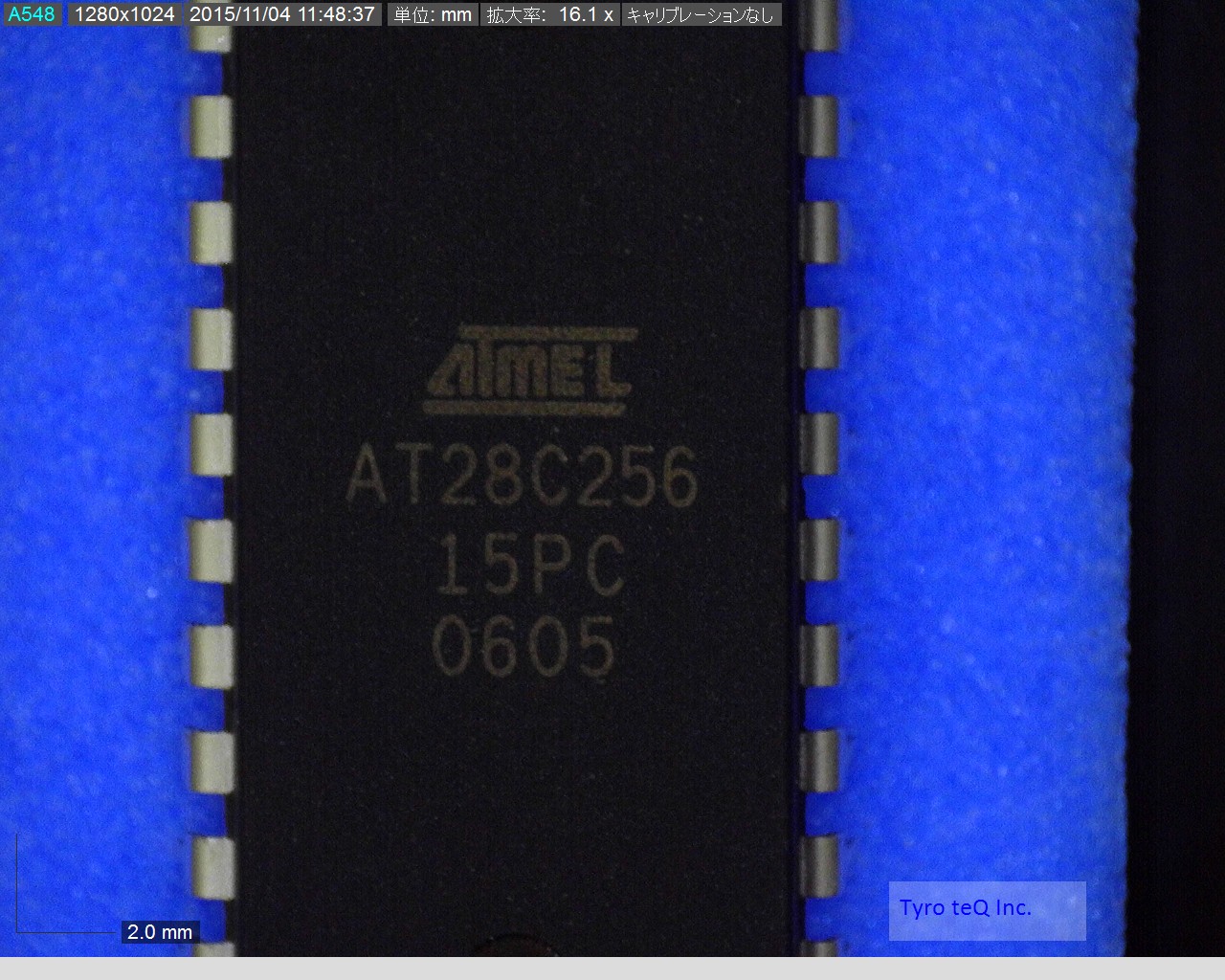

AT28C256-15PC データシート

Name: AT28C256-15PC
Brand: ATMEL
SKU: 110004359-0000-0000-0000

AT28C256-15PC - ATMEL の商品詳細ページです。

２営業日以内に回答いたします

AT28C256-15PC の詳細情報

型番	AT28C256-15PC
メーカー	ATMEL
データシート
Access Time-Max	150 ns
Additional Feature	AUTOMATIC WRITE
Command User Interface	NO
Data Polling	YES
Data Retention Time-Min	10
Endurance	10000 Write/Erase Cycles
JESD-30 Code	R-PDIP-T28
JESD-609 Code	e0
Length	37.0205 mm
Memory Density	262144 bit
Memory IC Type	EEPROM
Memory Width	8
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	28
Number of Words	32768 words
Number of Words Code	32K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	32KX8
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP28,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Page Size	64 words
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	225
Power Supplies	5 V
Programming Voltage	5 V
Qualification Status	Not Qualified
Screening Level	MIL-STD-883
Seated Height-Max	4.826 mm
Standby Current-Max	0.0002 Amp
Sub Category	EEPROMs
Supply Current-Max	0.05 mA
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Toggle Bit	YES
