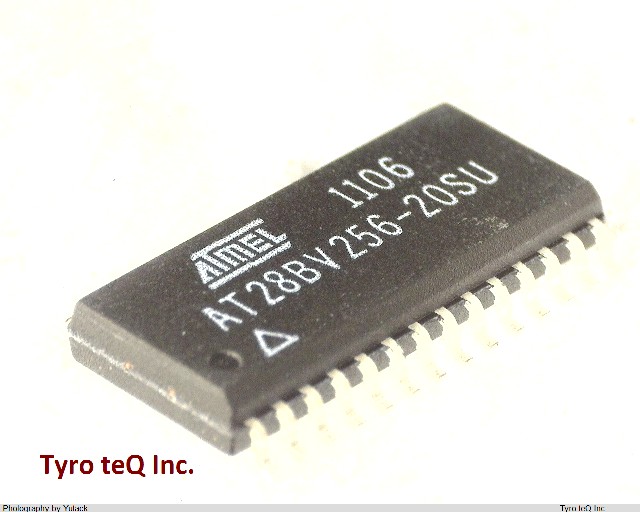

AT28BV256-20SU データシート

Name: AT28BV256-20SU
Brand: ATMEL
SKU: 110051880-0000-0000-0000

AT28BV256-20SU - ATMEL の商品詳細ページです。

２営業日以内に回答いたします

AT28BV256-20SU の詳細情報

型番	AT28BV256-20SU
メーカー	ATMEL
データシート
Access Time-Max	200 ns
Additional Feature	AUTOMATIC WRITE
Command User Interface	NO
Data Polling	YES
Endurance	10000 Write/Erase Cycles
JESD-30 Code	R-PDSO-G28
JESD-609 Code	e3
Length	17.9 mm
Memory Density	262144 bit
Memory IC Type	EEPROM
Memory Width	8
Moisture Sensitivity Level	2
Number of Functions	1
Number of Ports	1
Number of Terminals	28
Number of Words	32768 words
Number of Words Code	32K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Organization	32KX8
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP28,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Page Size	64 words
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	260
Power Supplies	3/3.3 V
Programming Voltage	3 V
Qualification Status	Not Qualified
Seated Height-Max	2.65 mm
Standby Current-Max	5.0E-5 Amp
Sub Category	EEPROMs
Supply Current-Max	0.015 mA
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	2.7 V
Supply Voltage-Nom (Vsup)	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Toggle Bit	YES
Width	7.5 mm
Write Cycle Time-Max (tWC)	10 ms
