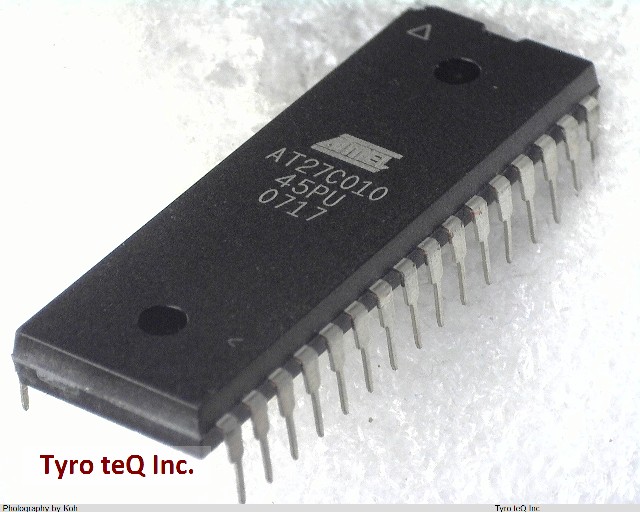

AT27C01045PU
データシート
1
-
- 個
２営業日以内に回答いたします
AT27C01045PU の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | AT27C01045PU |
|---|---|
| メーカー | ATMEL |
| データシート |  |
| Access Time-Max | 45 ns |
| I/O Type | COMMON |
| JESD-30 Code | R-PDIP-T32 |
| JESD-609 Code | e3 |
| Length | 42.037 mm |
| Memory Density | 1048576 bit |
| Memory IC Type | OTP ROM |
| Memory Width | 8 |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Terminals | 32 |
| Number of Words | 131072 words |
| Number of Words Code | 128K |
| Operating Mode | ASYNCHRONOUS |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |
| Organization | 128KX8 |
| Output Characteristics | 3-STATE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP32,.6 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Parallel/Serial | PARALLEL |
| Peak Reflow Temperature (Cel) | 245 |
| Power Supplies | 5 V |
| Qualification Status | Not Qualified |
| Seated Height-Max | 4.826 mm |
| Standby Current-Max | 1.0E-5 Amp |
| Sub Category | OTP ROMs |
| Supply Current-Max | 0.035 mA |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | MATTE TIN |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 15.24 mm |
| 会社名称 | Atmel Corporation |
|---|---|
| 設立 | 1984 |
| 所在地 | 1600 Technology Drive San Jose, 95110 United States |
| URL | http://www.atmel.com/ |
