AT27C010-15DC データシート Atmel

AT27C010-15DC - ATMEL の商品詳細ページです。

1

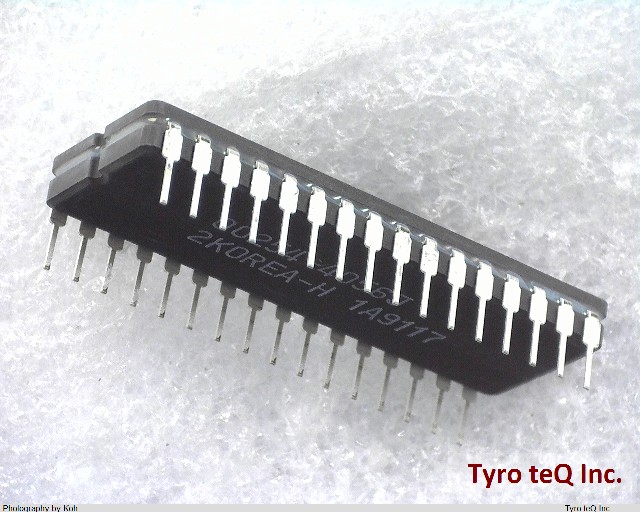

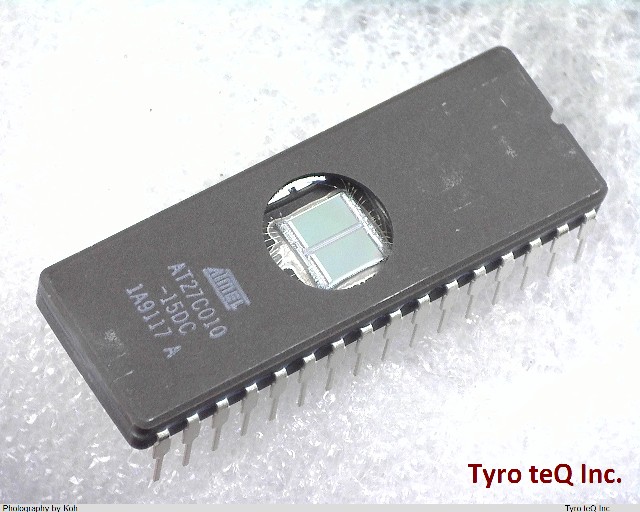

AT27C010-15DC
  • AT27C010-15DC
  • AT27C010-15DC
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

AT27C010-15DC の詳細情報

  • 仕様・詳細
  • メーカー情報
型番AT27C010-15DC
メーカーATMEL
データシートProduct_list_pdf
Access Time-Max 150 ns
I/O Type COMMON
JESD-30 Code R-GDIP-T32
JESD-609 Code e0
Length 42.3 mm
Memory Density 1048576 bit
Memory IC Type UVPROM
Memory Width 8
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 32
Number of Words 131072 words
Number of Words Code 128K
Operating Mode ASYNCHRONOUS
Operating Temperature-Max 70 Cel
Operating Temperature-Min 0 Cel
Organization 128KX8
Output Characteristics 3-STATE
Package Body Material CERAMIC, GLASS-SEALED
Package Code WDIP
Package Equivalence Code DIP32,.6
Package Shape RECTANGULAR
Package Style IN-LINE, WINDOW Meter
Parallel/Serial PARALLEL
Power Supplies 5 V
Qualification Status Not Qualified
Seated Height-Max 5.72 mm
Standby Current-Max 1.0E-5 Amp
Sub Category EPROMs
Supply Current-Max 0.04 mA
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 15.24 mm
会社名称Atmel Corporation
設立1984
所在地1600 Technology Drive　San Jose, 95110 United States
URLhttp://www.atmel.com/
