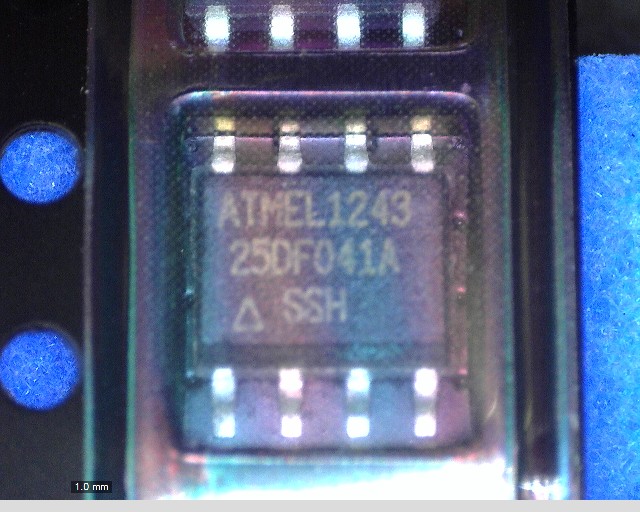

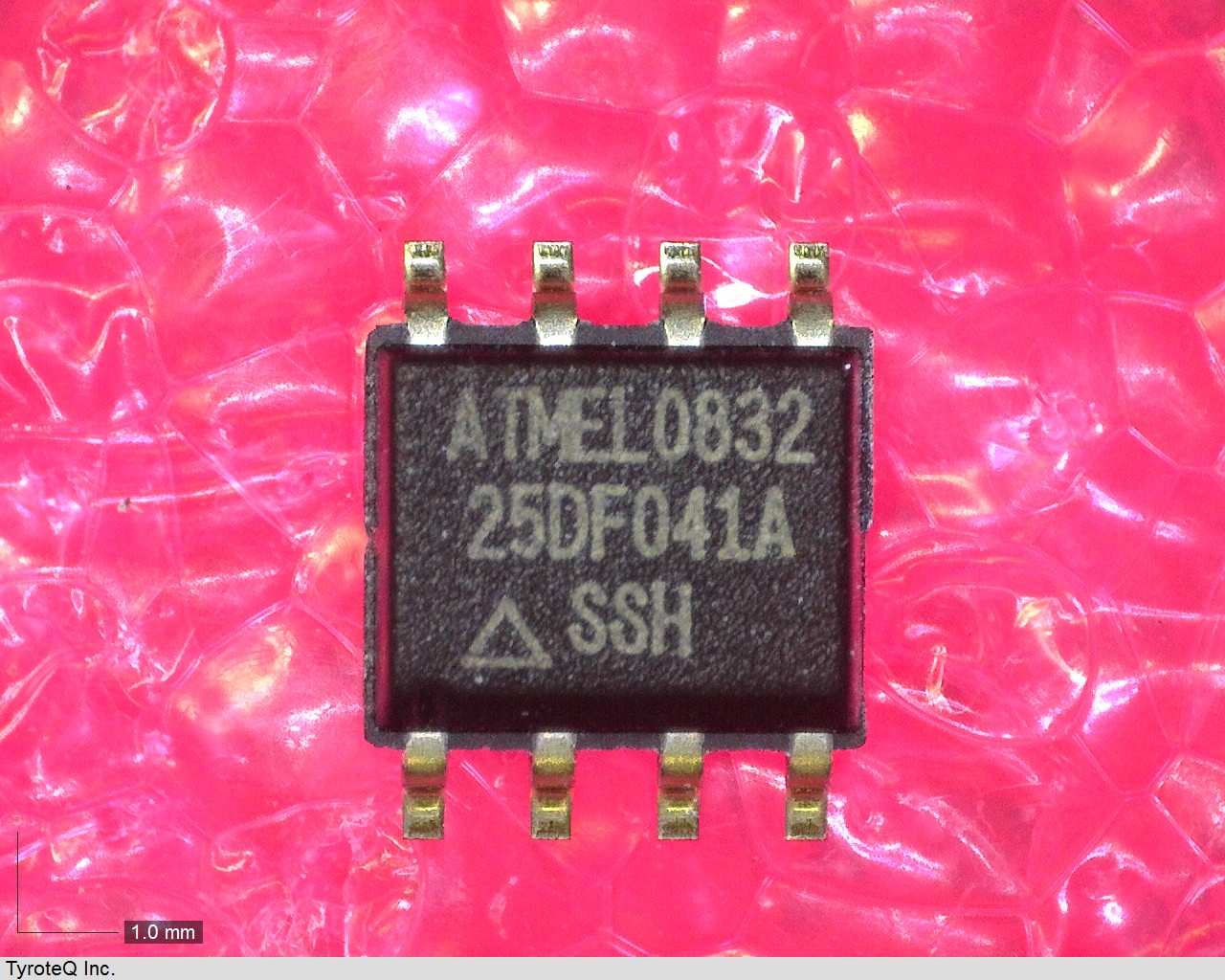

AT25DF041A-SSHF-B
  • AT25DF041A-SSHF-B
  • AT25DF041A-SSHF-B
  • AT25DF041A-SSHF-B
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

AT25DF041A-SSHF-B の詳細情報

  • 仕様・詳細
  • メーカー情報
型番AT25DF041A-SSHF-B
メーカーATMEL
データシートProduct_list_pdf
Clock Frequency-Max (fCLK) 50 MHz
Data Retention Time-Min 20
Endurance 100000 Write/Erase Cycles
JESD-30 Code R-PDSO-G8
JESD-609 Code e4
Length 4.925 mm
Memory Density 4194304 bit
Memory IC Type FLASH
Memory Width 1
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 8
Number of Words 4194304 words
Number of Words Code 4M
Operating Mode SYNCHRONOUS
Operating Temperature-Max 85 Cel
Operating Temperature-Min -40 Cel
Organization 4MX1
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.3
Package Shape RECTANGULAR
Package Style SMALL OUTLINE Meter
Parallel/Serial SERIAL
Peak Reflow Temperature (Cel) 260
Power Supplies 2.5/3.3 V
Programming Voltage 2.7 V
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Serial Bus Type SPI
Standby Current-Max 1.5E-5 Amp
Sub Category Flash Memories
Supply Current-Max 0.014 mA
Supply Voltage-Max (Vsup) 3.6 V
Supply Voltage-Min (Vsup) 2.3 V
Supply Voltage-Nom (Vsup) 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Type NOR TYPE
Width 3.9 mm
Write Protection HARDWARE/SOFTWARE
