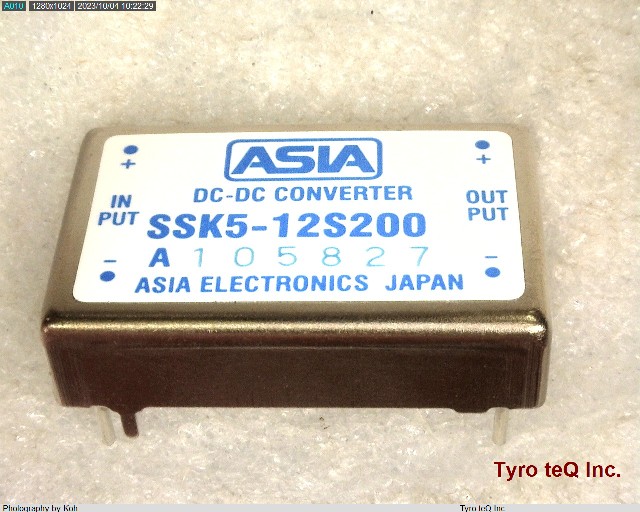

SSK5-12S200

Name: SSK5-12S200
Brand: ASIA ELE
SKU: 400067855-0000-0000-0000

SSK5-12S200 - ASIA ELE の商品詳細ページです。

２営業日以内に回答いたします

SSK5-12S200 の詳細情報

型番	SSK5-12S200
メーカー	ASIA ELE
Analog IC - Other Type	DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max	9 V
Input Voltage-Min	4.5 V
Input Voltage-Nom	5 V
JESD-30 Code	R-MXMA-P5
Length	33 mm
Load Regulation-Max	0.5 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	5
Operating Temperature-Max	65 Cel
Operating Temperature-Min	-30 Cel
Output Voltage-Max	12.36 V
Output Voltage-Min	11.64 V
Output Voltage-Nom	12 V
Package Body Material	METAL
Package Shape	RECTANGULAR
Package Style	MICROELECTRONIC ASSEMBLY Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Seated Height-Max	9 mm
Surface Mount	NO
Technology	HYBRID
Temperature Grade	OTHER
Terminal Form	PIN/PEG
Terminal Position	UNSPECIFIED
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Total Power Output-Max	2.4 W
Trim/Adjustable Output	NO V
Width	21 mm
