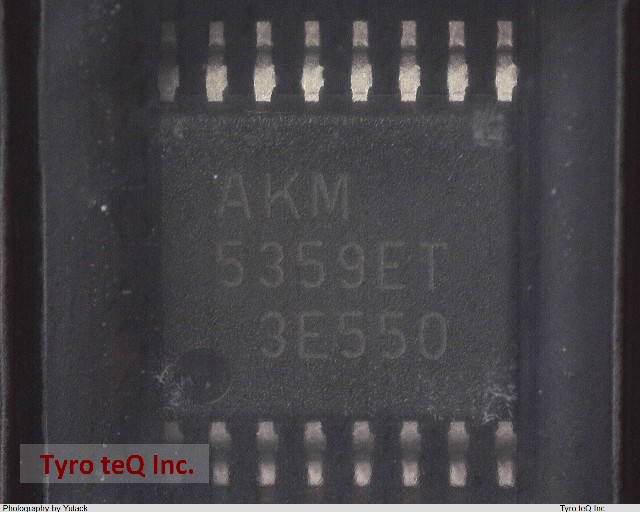

AK5359ET

Name: AK5359ET
Brand: ASAHI KASEI
SKU: 110267441-0000-0000-0000

AK5359ET - ASAHI KASEI の商品詳細ページです。

２営業日以内に回答いたします

AK5359ET の詳細情報

型番	AK5359ET
メーカー	ASAHI KASEI
Analog Input Voltage-Max	3.3 V
Analog Input Voltage-Min	2.7 V
Converter Type	ADC, DELTA-SIGMA
JESD-30 Code	R-PDSO-G16
Length	5 mm
Number of Analog In Channels	2
Number of Bits	24
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-20 Cel
Output Bit Code	2'S COMPLEMENT BINARY
Output Format	SERIAL
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
Sample Rate	0.216 MHz
Seated Height-Max	1.1 mm
Supply Voltage-Nom	5 V
Surface Mount	YES
Temperature Grade	OTHER
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	4.4 mm
