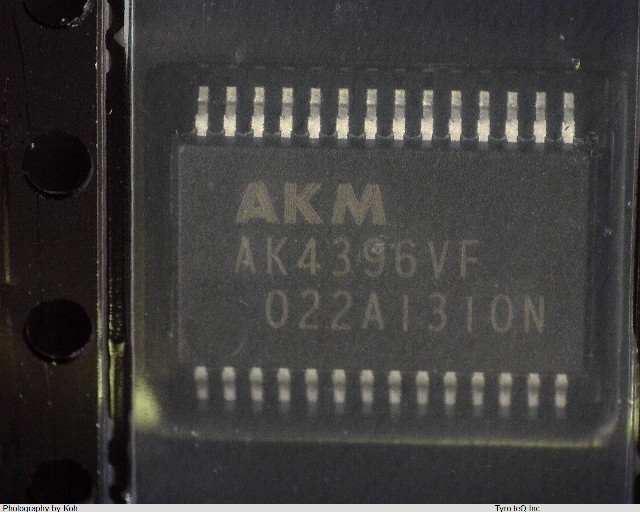

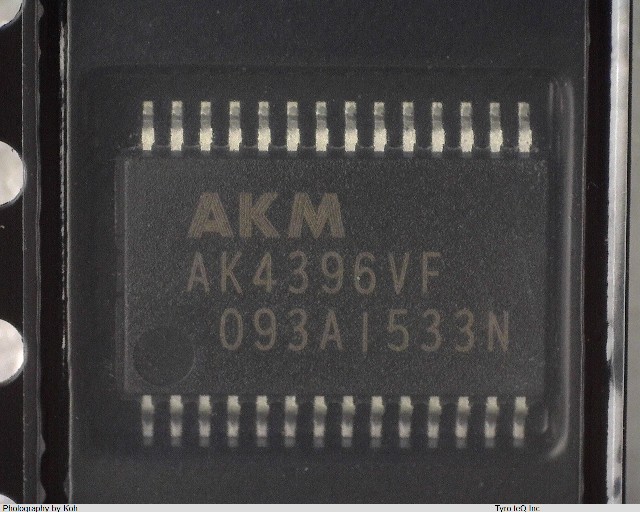

AK4396VF

Name: AK4396VF
Brand: ASAHI KASEI
SKU: 110258836-0000-0000-0000

AK4396VF - ASAHI KASEI の商品詳細ページです。

24時間52分後以内に見積もり依頼を頂ければ、
06月04日(火) 9:00 までに見積もり回答いたします。

検討リストに追加する

AK4396VF の詳細情報

型番	AK4396VF
メーカー	ASAHI KASEI
Analog Output Voltage-Max	2.95 V
Analog Output Voltage-Min	2.65 V
Converter Type	D/A CONVERTER
Input Bit Code	2'S COMPLEMENT BINARY
Input Format	SERIAL
JESD-30 Code	R-PDSO-G28
Length	9.8 mm
Number of Bits	24
Number of Functions	1
Number of Terminals	28
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	SSOP28,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3/5 V
Qualification Status	Not Qualified
Seated Height-Max	1.45 mm
Sub Category	Other Converters
Supply Voltage-Nom	5 V
Surface Mount	YES
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	10
Width	5.6 mm
