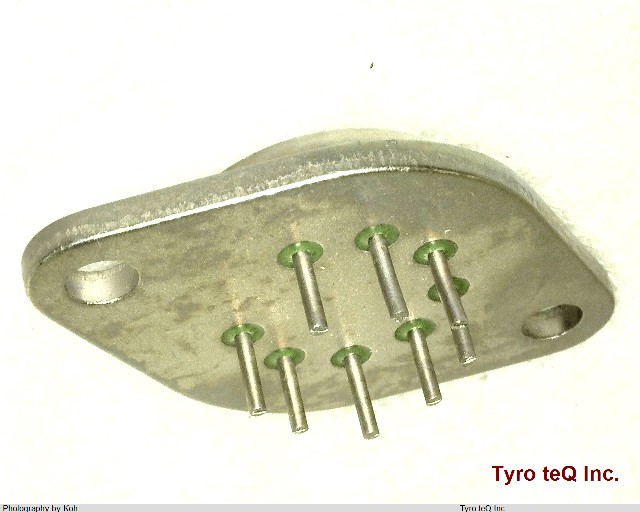

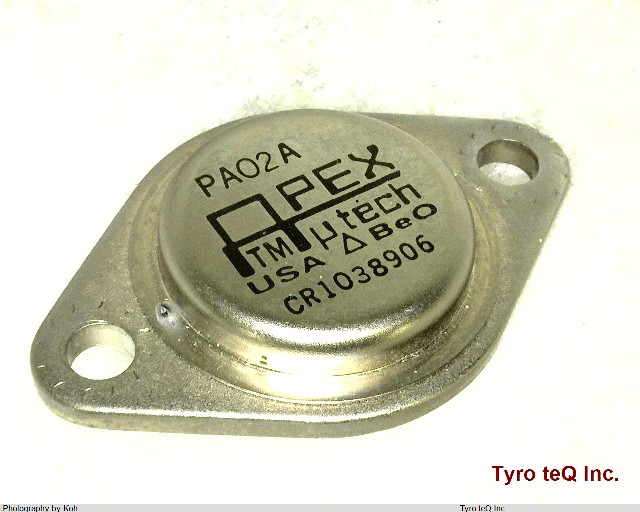

PA02A の詳細情報

  • 仕様・詳細
  • メーカー情報
型番PA02A
メーカーAPEX
データシートProduct_list_pdf
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.0001 uA
Bias Current-Max (IIB) @25C 0.0001 uA
Common-mode Reject Ratio-Min 70 dB
Common-mode Reject Ratio-Nom 100 dB
Frequency Compensation YES
Input Offset Voltage-Max 3000 uV
JESD-30 Code O-MBFM-P8
Low-Bias YES
Low-Offset NO
Neg Supply Voltage Limit-Max -19 V
Neg Supply Voltage-Nom (Vsup) -15 V
Number of Functions 1
Number of Terminals 8
Operating Temperature-Max 125 Cel
Operating Temperature-Min -55 Cel
Package Body Material METAL
Package Equivalence Code CAN8/9,.5FL
Package Shape ROUND
Package Style FLANGE MOUNT Meter
Peak Reflow Temperature (Cel) 300
Power YES
Power Supplies +-15 V
Qualification Status Not Qualified
Slew Rate-Min 13 V/us
Slew Rate-Nom 20 V/us
Sub Category Operational Amplifier
Supply Current-Max 37 mA
Supply Voltage Limit-Max 19 V
Supply Voltage-Nom (Vsup) 15 V
Surface Mount NO
Technology HYBRID
Temperature Grade MILITARY
Terminal Finish NICKEL
Terminal Form PIN/PEG
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) 10
Unity Gain BW-Nom 4500 kHz
Voltage Gain-Min 19950
会社名称Cirrus Logic, Inc.
設立1984
所在地800 West 6th Street Austin, Texas 78701
URLhttp://www.cirrus.com/en/
