MS3102R24-28S データシート

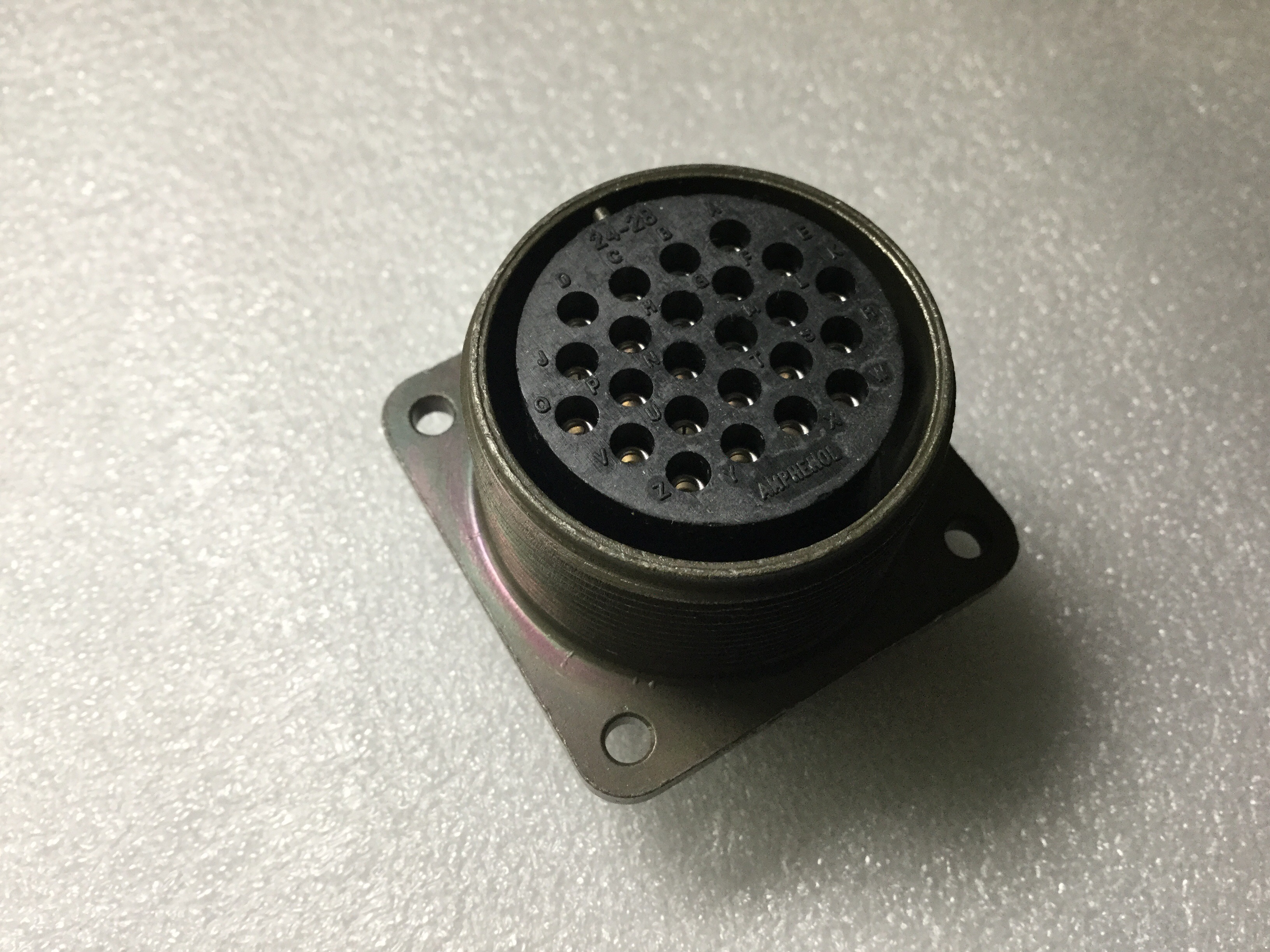

Name: MS3102R24-28S
Brand: AMPHENOL
SKU: 230409683-0000-0000-0000

MS3102R24-28S - AMPHENOL の商品詳細ページです。

２営業日以内に回答いたします

MS3102R24-28S の詳細情報

型番	MS3102R24-28S
メーカー	AMPHENOL
データシート
Additional Feature	STANDARD: MIL-C-5015
Backshell Type	SOLID
Body/Shell Style	RECEPTACLE
Connector Type	MIL SERIES CIRCULAR CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	SILVER
Contact Gender	FEMALE
Contact Material	BRASS/COPPER ALLOY
Contact Quantities	24
Contact Sizes	16
Contact Type	SOLDER CUP
Coupling Type	THREADED
DIN Conformance	NO
Degrees of Rotation	0
Description	BOX MOUNTING RECEPTACLE
Empty Shell	NO
Environmental Characteristics	CORROSION RESISTANT; ENVIRONMENT RESISTANT
Filter Feature	NO
IEC Conformance	NO
JESD-609 Code	e0
MIL Conformance	YES
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Type	CABLE AND PANEL
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Polarization	N
Shell Finish	CADMIUM
Shell Material	ALUMINIUM ALLOY
Shell Size	24
Termination Type	CRIMP
Total Number of Contacts	24
Unique Insert Number	24-28
