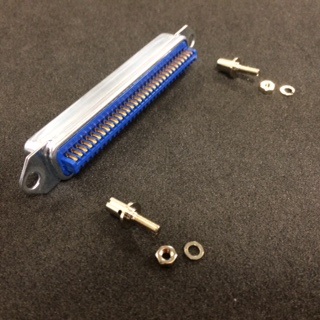

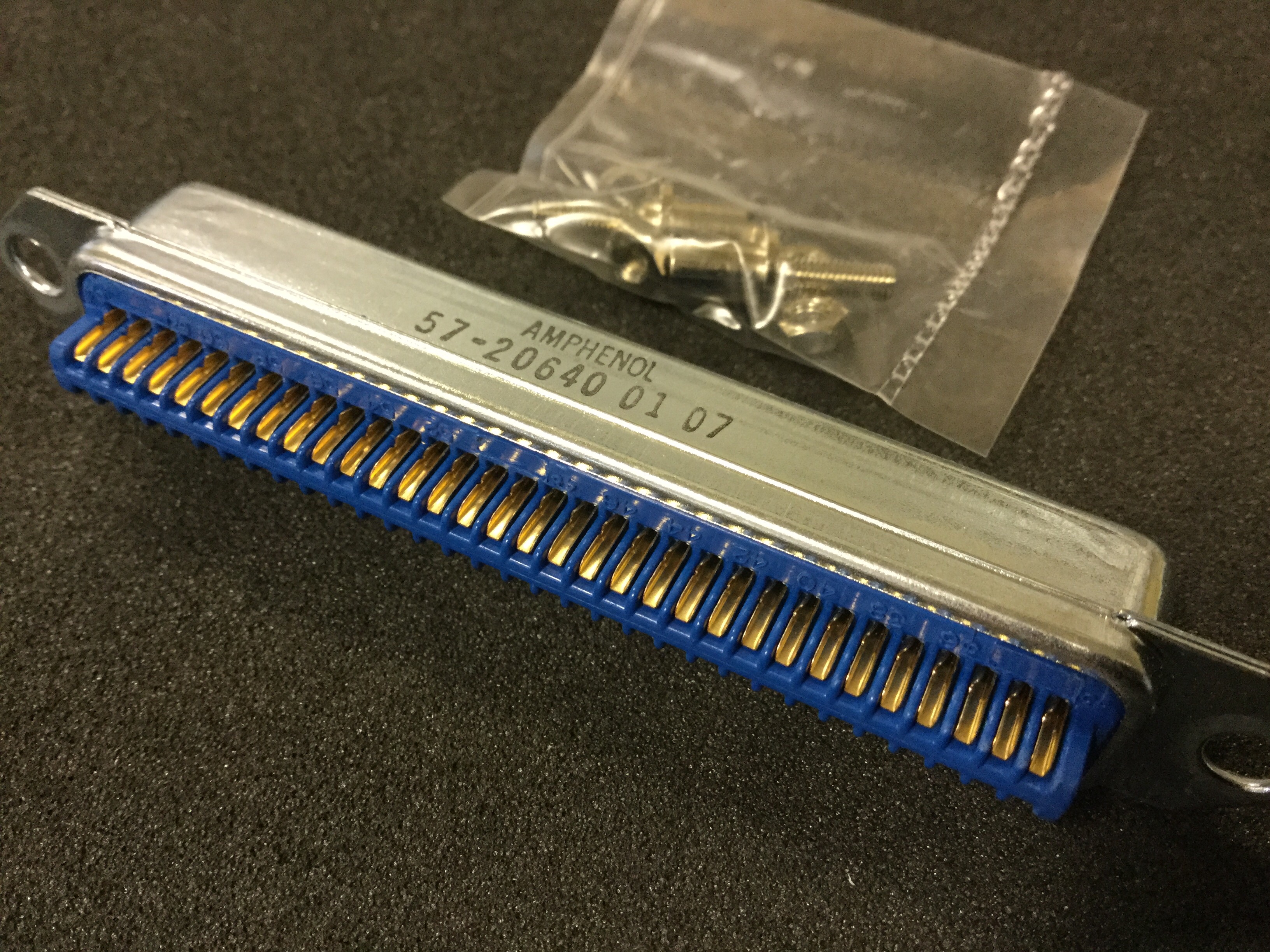

57-20640 データシート

Name: 57-20640
Brand: AMPHENOL
SKU: 60163962-0000-0000-0000

57-20640 - AMPHENOL の商品詳細ページです。

２営業日以内に回答いたします

57-20640 の詳細情報

型番	57-20640
メーカー	AMPHENOL
データシート
Additional Feature	NO GUIDE SLOT
Body Breadth	0.61 inch
Body Length	3.858 inch
Body/Shell Style	PLUG
Connector Type	TELECOM AND DATACOM CONNECTOR
Contact Design	PREASSEM CONN
Contact Finish - Mating	AU
Contact Gender	FEMALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Style	BELLOWED TYPE
DIN Conformance	NO
Dielectric Withstanding Voltage	1200VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Material	DIALLYL PHTHALATE
MIL Conformance	NO
Mating Contact Pitch	0.085 inch
Mixed Contacts	NO
Mounting Option 1	HOLE .112-.124
Mounting Option 2	SCREW
Mounting Type	CABLE
Number of Rows Loaded	2
Option	GENERAL PURPOSE
Rated Current (Signal)	5 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	BRASS
Sub Category	D Type Connectors
Termination Type	SOLDER
Total Number of Contacts	64
UL Flammability Code	94V-0
Wire Size-Max	22 AWG
Wire Size-Min	22 AWG
