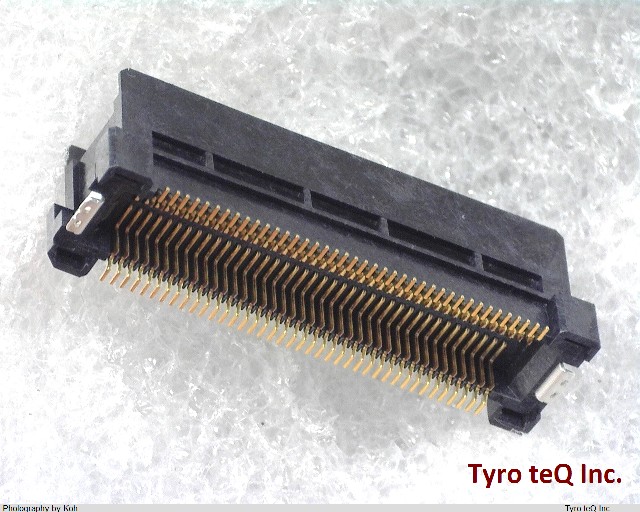

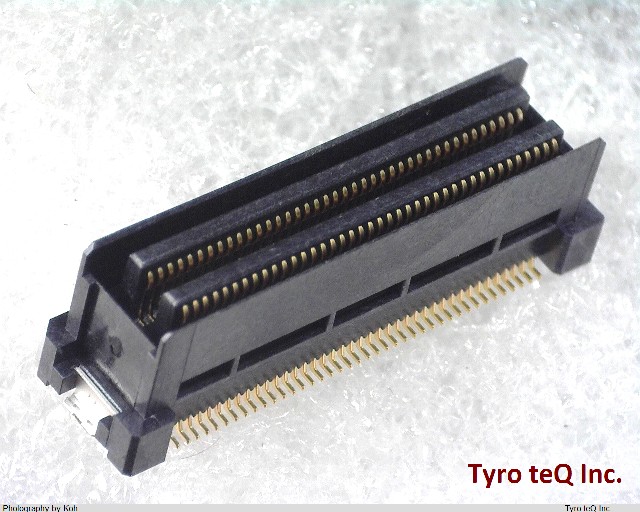

6376610-2

Name: 6376610-2
Brand: AMP
SKU: 70180331-0000-0000-0000

6376610-2 - AMP の商品詳細ページです。

２営業日以内に回答いたします

6376610-2 の詳細情報

型番	6376610-2
メーカー	AMP
Board Mounting Option	SOLDER HOLDING POSTS
Body Breadth	0.323 inch
Body Depth	0.354 inch
Body Length	1.197 inch
Body/Shell Style	PLUG
Connector Type	BOARD STACKING CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	GOLD OVER NICKEL
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
DIN Conformance	NO
Durability	100 Cycles
EMI Shielded	NO
Empty Shell	YES
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	GRAY
Insulator Material	LIQUID CRYSTAL POLYMER
JESD-609 Code	e4
MIL Conformance	NO
Mains Connector Rating	.5A
Mating Contact Pitch	0.024 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Ports	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	6.604 mm
Panel Mount	NO
Plating Thickness	31.45u inch
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	0.5 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	0.6 mm
Termination Type	SOLDER
Total Number of Contacts	80
UL Flammability Code	94V-0
