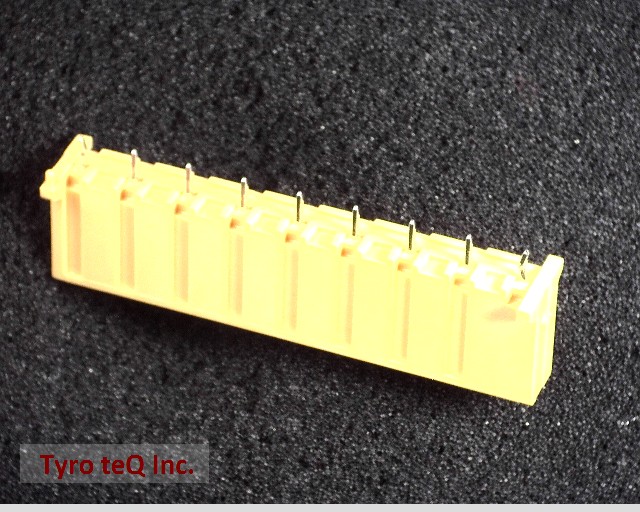

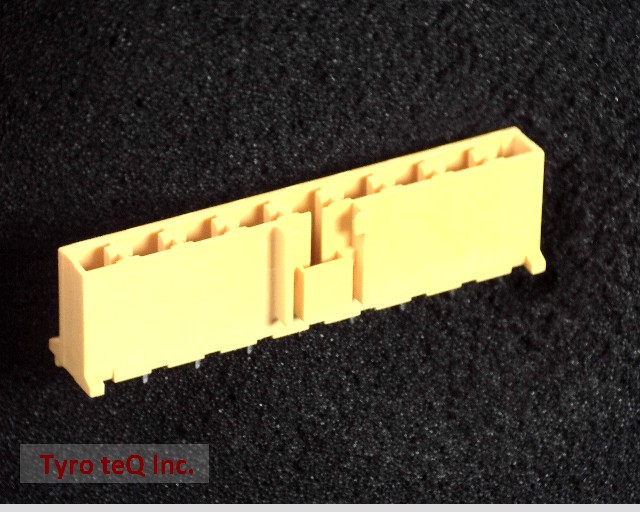

6-178841-4 Amp

6-178841-4 - AMP の商品詳細ページです。

1
6-178841-4
  • 6-178841-4
  • 6-178841-4
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

6-178841-4 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番6-178841-4
メーカーAMP
Additional Feature POLARIZED
Body/Shell Style PLUG
Connector Type RECTANGULAR POWER CONNECTOR
Contact Finish - Mating NOT SPECIFIED
Contact Gender MALE
Contact Material NOT SPECIFIED
DIN Conformance NO
EMI Shielded NO
Empty Shell YES
Filter Feature NO
IEC Conformance NO
Insulator Color YELLOW
Insulator Material GLASS FILLED POLYAMIDE66
MIL Conformance NO
Mains Connector Rating 11A
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number of Ports 1
Number of Rows Loaded 1
Operating Temperature-Max 105 Cel
Operating Temperature-Min -30 Cel
Option GENERAL PURPOSE
Panel Mount NO
Plating Thickness 39.37u inch
Rated Current (Signal) 11 A
Reference Standard UL
Shell Material GLASS FILLED POLYAMIDE66
Terminal Pitch 6.2 mm
Termination Type SOLDER
Total Number of Contacts 9
UL Flammability Code 94V-0
会社名称TE Connectivity Ltd.
設立1941
所在地Rheinstrasse 20 Ch-8200 Schaffhausen Switzerland
URLhttp://www.te.com/
