350780-1 データシート

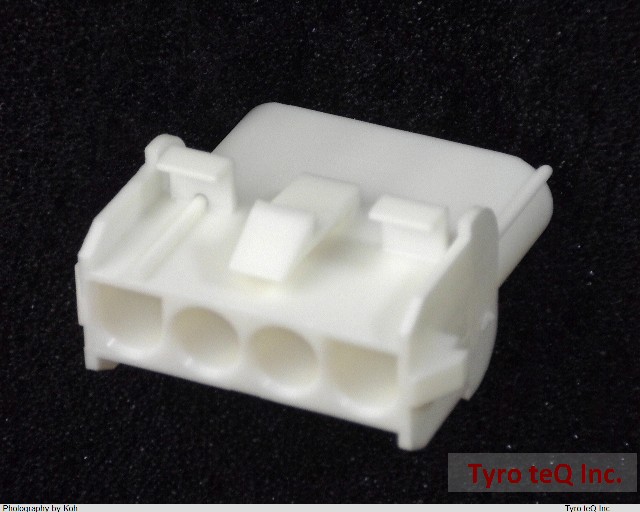

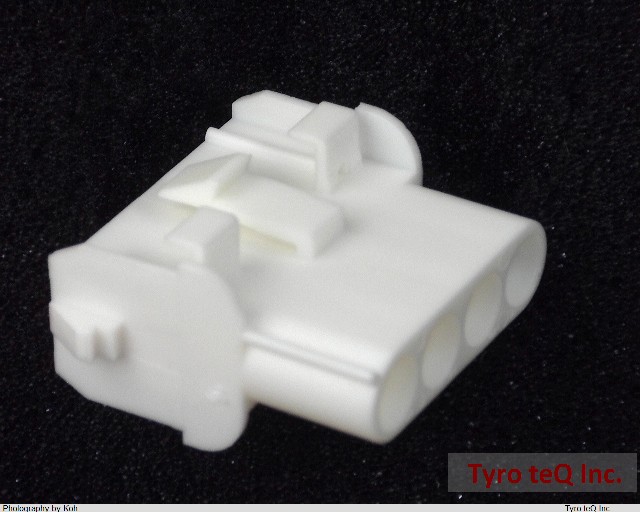

Name: 350780-1
Brand: AMP
SKU: 40184765-0000-0000-0000

350780-1 - AMP の商品詳細ページです。

２営業日以内に回答いたします

350780-1 の詳細情報

型番	350780-1
メーカー	AMP
データシート
Additional Feature	POLARIZED, MATE-N-LOK
Body Breadth	0.3 inch
Body Depth	1.08 inch
Body Length	1.05 inch
Body/Shell Style	RECEPTACLE
Connector Type	RECTANGULAR POWER CONNECTOR
Contact Arrangement	S0P4
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	NOT APPLICABLE
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	3.5 mohm
Contact Style	RND PIN-SKT
DIN Conformance	NO
Durability	50 Cycles
EMI Shielded	NO
Empty Shell	YES
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	22.24 N
Insulation Resistance	100000000 ohm
Insulator Color	NATURAL
Insulator Material	POLYAMIDE
MIL Conformance	NO
Mains Connector Rating	115/230VAC
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	DETENT
Mounting Option 2	LOCKING
Mounting Style	STRAIGHT
Mounting Type	PANEL
Number Of Connectors	ONE
Number of Ports	1
Number of Rows Loaded	1
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Panel Mount	NO
Reference Standard	CSA, UL, V
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	6.35 mm
Termination Type	CRIMP
Total Number of Contacts	4
UL Flammability Code	94V-0
Withdrawl Force-Min	3.1136 N
