350210-1 データシート

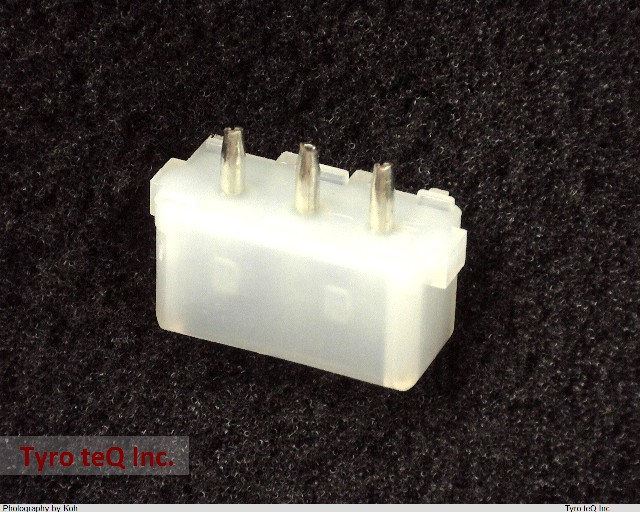

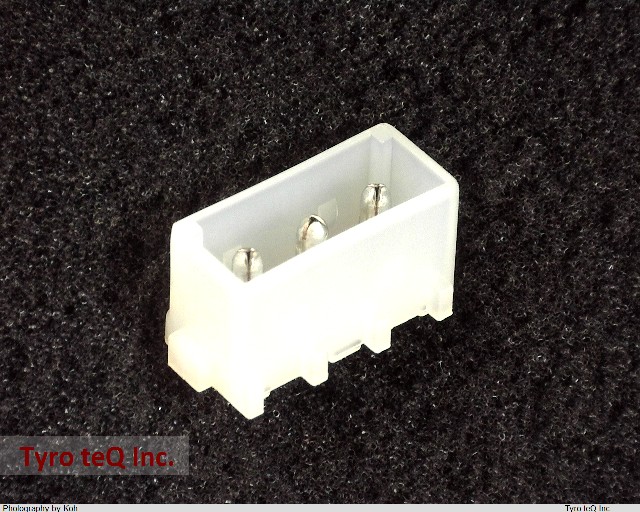

Name: 350210-1
Brand: AMP
SKU: 40186660-0000-0000-0000

350210-1 - AMP の商品詳細ページです。

２営業日以内に回答いたします

350210-1 の詳細情報

型番	350210-1
メーカー	AMP
データシート
Additional Feature	BRASS, NICKEL PLATED, PANEL MOUNT
Body Breadth	0.375 inch
Body Depth	0.715 inch
Body Length	0.33 inch
Body/Shell Style	RECEPTACLE
Connector Type	INTERCONNECTION DEVICE
Contact Arrangement	S0P3
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Tin (Sn)
Contact Gender	MALE
Contact Material	PHOSPHOR BRONZE
Contact Pattern	RECTANGULAR
Contact Resistance	2.5 mohm
Contact Style	RND PIN-SKT
DIN Conformance	NO
Durability	50 Cycles
EMI Shielded	NO
Empty Shell	YES
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	17.792 N
Insulation Resistance	500000000 ohm
Insulator Color	NATURAL
Insulator Material	POLYAMIDE
JESD-609 Code	e3
MIL Conformance	NO
Mains Connector Rating	12A
Mating Information	1-480303-0
Mixed Contacts	NO
Mounting Option 2	DETENT LOCK
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number of Ports	1
Number of Rows Loaded	1
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-40 Cel
Option	GENERAL PURPOSE
Panel Mount	NO
Plating Thickness	200u inch
Polarization Key	POLARIZED
Rated Current (Signal)	12 A
Reference Standard	CSA, UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.12 inch
Terminal Pitch	5.08 mm
Termination Type	SOLDER
Total Number of Contacts	3
UL Flammability Code	94V-2
