3-178141-2 データシート

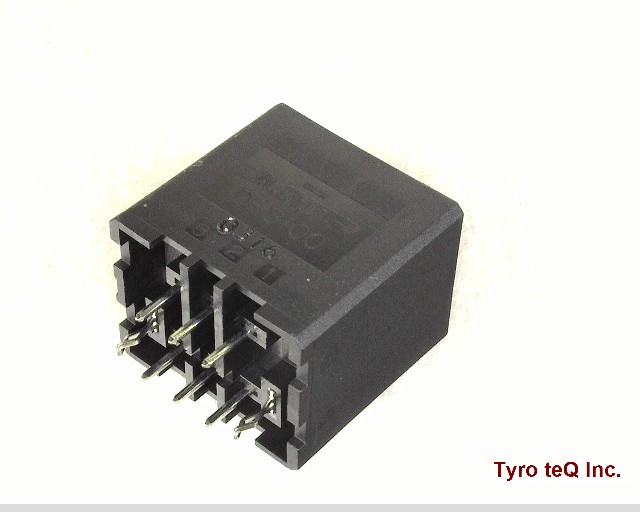

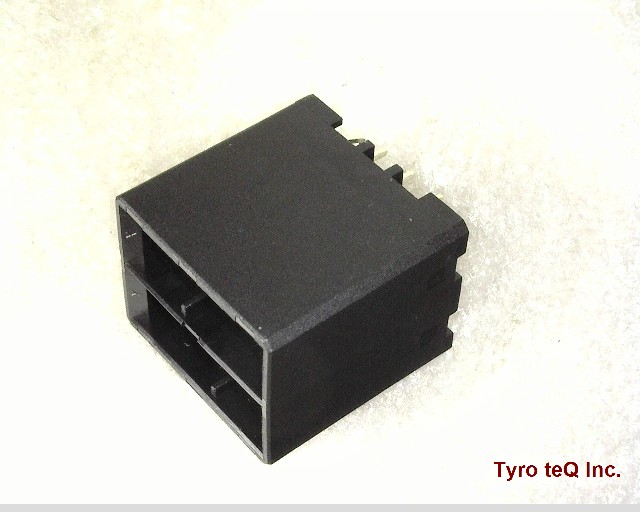

Name: 3-178141-2
Brand: AMP
SKU: 400052829-0000-0000-0000

3-178141-2 - AMP の商品詳細ページです。

222時間44分後以内に見積もり依頼を頂ければ、
05月08日(水) 9:00 までに見積もり回答いたします。

検討リストに追加する

3-178141-2 の詳細情報

型番	3-178141-2
メーカー	AMP
データシート
Additional Feature	POLARIZATION AVAILABLE
Board Mounting Option	SOLDERABLE RETENTION CLIPS
Body Breadth	0.668 inch
Body Depth	0.85 inch
Body Length	0.851 inch
Body/Shell Style	PLUG
Connector Type	RECTANGULAR POWER CONNECTOR
Contact Arrangement	S0P6
Contact Finish - Mating	GOLD (15)
Contact Finish - Termination	GOLD OVER NICKEL
Contact Gender	MALE
Contact Material	COPPER ALLOY
Contact Style	BLADE PIN-SKT
DIN Conformance	NO
Durability	500 Cycles
EMI Shielded	NO
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	4.8928 N
Insulation Resistance	100000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYESTER
JESD-609 Code	e4
MIL Conformance	NO
Mains Connector Rating	9.5A
Manufacturer Series	178141
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number of Ports	1
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Panel Mount	NO
Plating Thickness	15u inch
Polarization Key	POLARIZED
Rated Current (Signal)	9.5 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Material	GLASS FILLED POLYETHYLENE POLYESTER
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.15 inch
Termination Type	SOLDER
Total Number of Contacts	6
UL Flammability Code	94V-0
