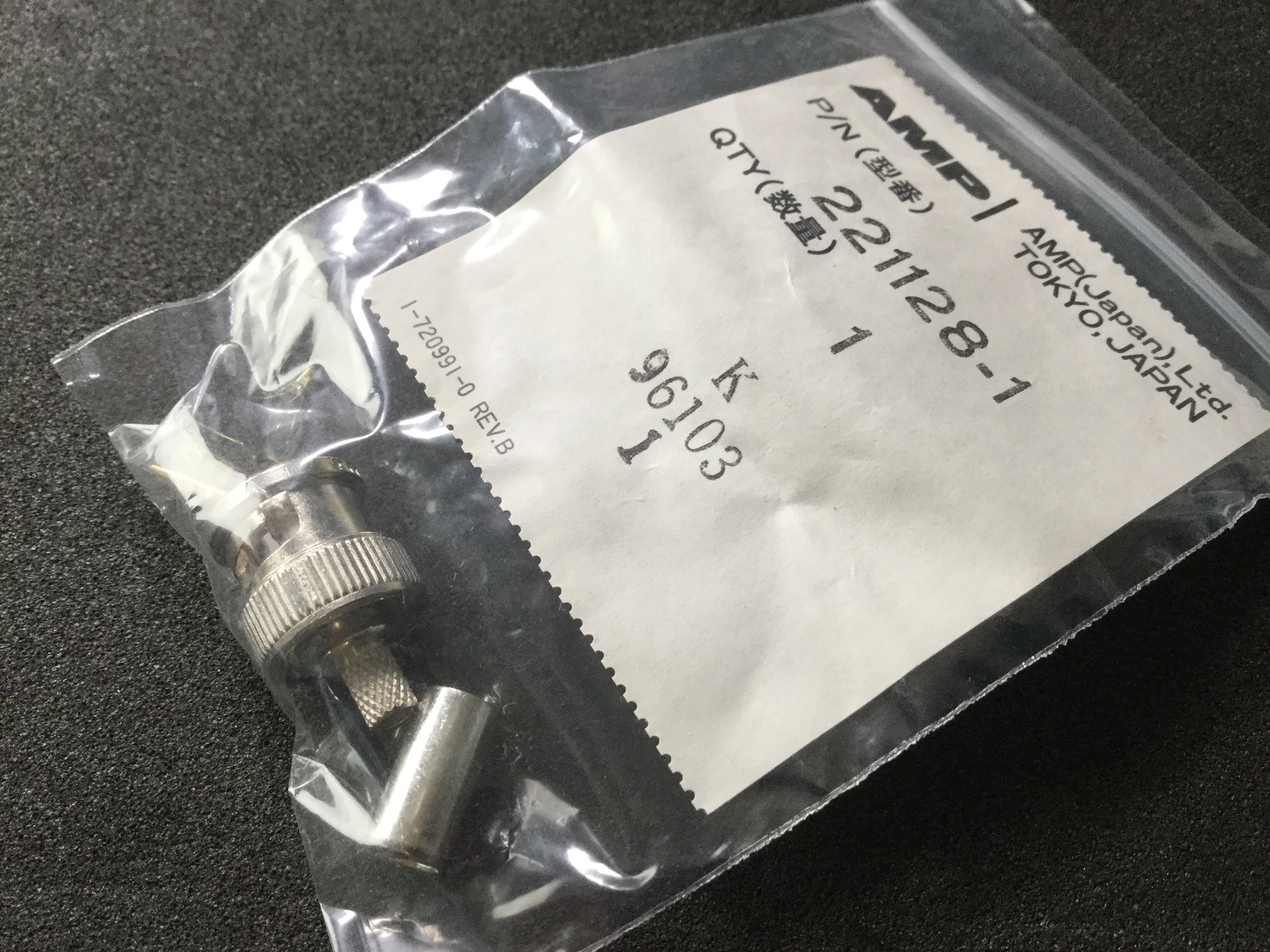

221128-1 データシート

Name: 221128-1
Brand: AMP
SKU: 30262150-0000-0000-0000

221128-1 - AMP の商品詳細ページです。

２営業日以内に回答いたします

221128-1 の詳細情報

型番	221128-1
メーカー	AMP
データシート
Additional Feature	APPLICABLE CABLES: RG 58/U; RG 58A/U; RG 58B/U; RG 58C/U
Body/Shell Style	PLUG
Cable Types	RG 58C, RG 58A, RG 58B, RG 58
Characteristic Impedance	50 ohm

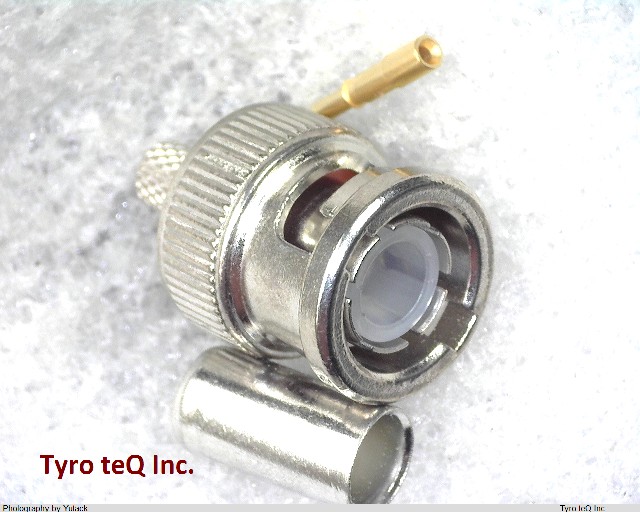

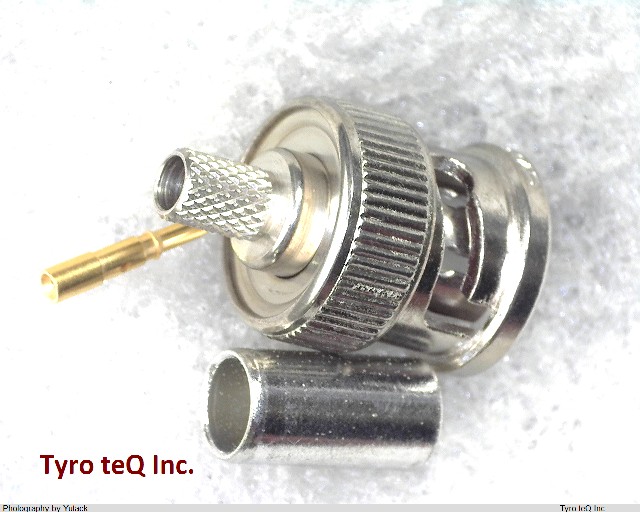

Connector Type	RF BNC CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	MALE
Contact Material	BRASS
Coupling Type	BAYONET
DIN Conformance	NO
EMI Shielded	NO
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insertion Loss	0.2 dB
Insulator Material	POLYETHYLENE
MIL Conformance	NO
Manufacturer Series	221128
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Style	STRAIGHT
Mounting Type	CABLE
Number Of Connectors	ONE
Number of Ports	1
Operating Frequency-Max	4 GHz
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Panel Mount	NO
Shell Finish	NICKEL
Shell Material	ZINC ALLOY
Termination Type	CRIMP
Total Number of Contacts	1
VSWR	1.3
