2-178137-2 Amp

2-178137-2 - AMP の商品詳細ページです。

1

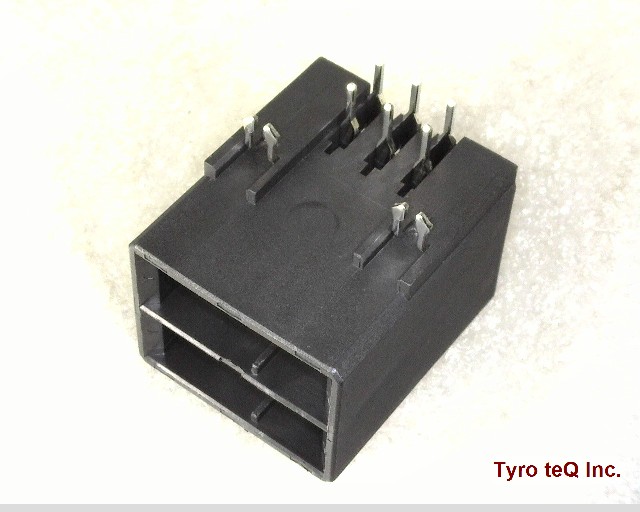

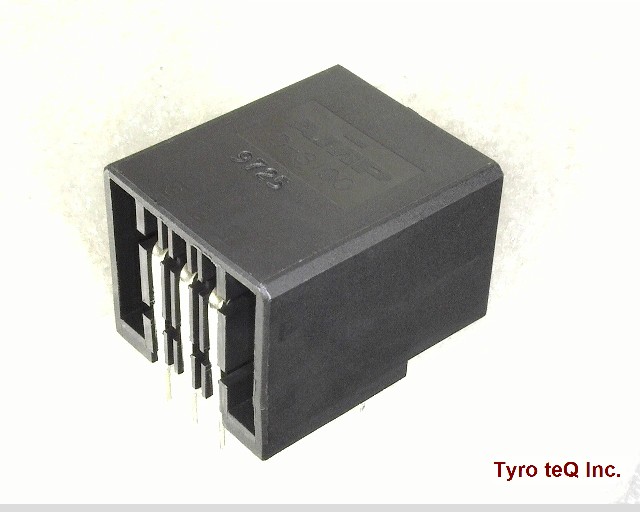

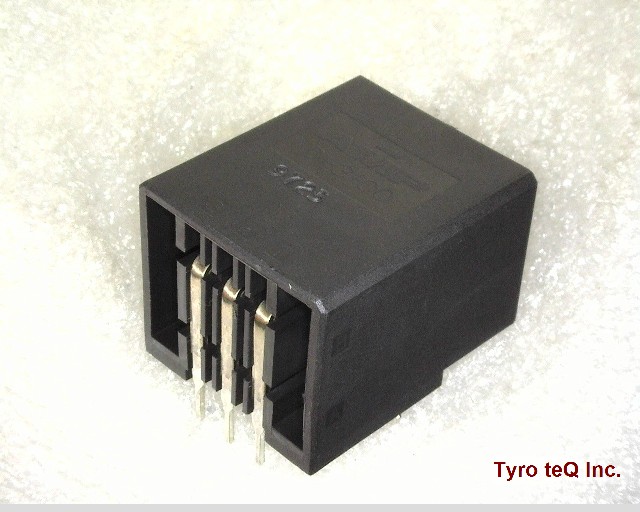

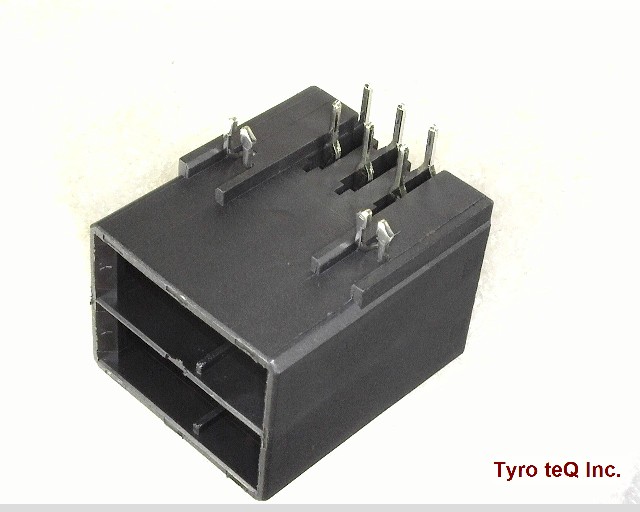

2-178137-2
  • 2-178137-2
  • 2-178137-2
  • 2-178137-2
  • 2-178137-2
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

2-178137-2 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番2-178137-2
メーカーAMP
Additional Feature POLARIZED
Board Mounting Option SOLDERABLE RETENTION CLIPS
Body Breadth 0.727 inch
Body Depth 1.02 inch
Body Length 0.851 inch
Body/Shell Style PLUG
Connector Type RECTANGULAR POWER CONNECTOR
Contact Arrangement S0P6
Contact Finish - Mating NOT SPECIFIED
Contact Gender MALE
Contact Material NOT SPECIFIED
Contact Style BLADE PIN-SKT
DIN Conformance NO
Durability 500 Cycles
EMI Shielded NO
Empty Shell YES
Filter Feature NO
IEC Conformance NO
Insertion Force-Max 4.8928 N
Insulation Resistance 100000000 ohm
Insulator Color BLACK
Insulator Material GLASS FILLED POLYESTER
MIL Conformance NO
Mains Connector Rating 8A
Mating Information 2-178288-3
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number Of Connectors ONE
Number of Ports 1
Number of Rows Loaded 2
Operating Temperature-Max 105 Cel
Operating Temperature-Min -55 Cel
Option GENERAL PURPOSE
Panel Mount NO
Plating Thickness 15u inch
Polarization Key POLARIZED
Rated Current (Signal) 8 A
Reference Standard UL
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Terminal Length 0.131 inch
Terminal Pitch 3.81 mm
Termination Type SOLDER
Total Number of Contacts 6
UL Flammability Code 94V-0
Withdrawl Force-Min .28912 N
会社名称TE Connectivity Ltd.
設立1941
所在地Rheinstrasse 20 Ch-8200 Schaffhausen Switzerland
URLhttp://www.te.com/
