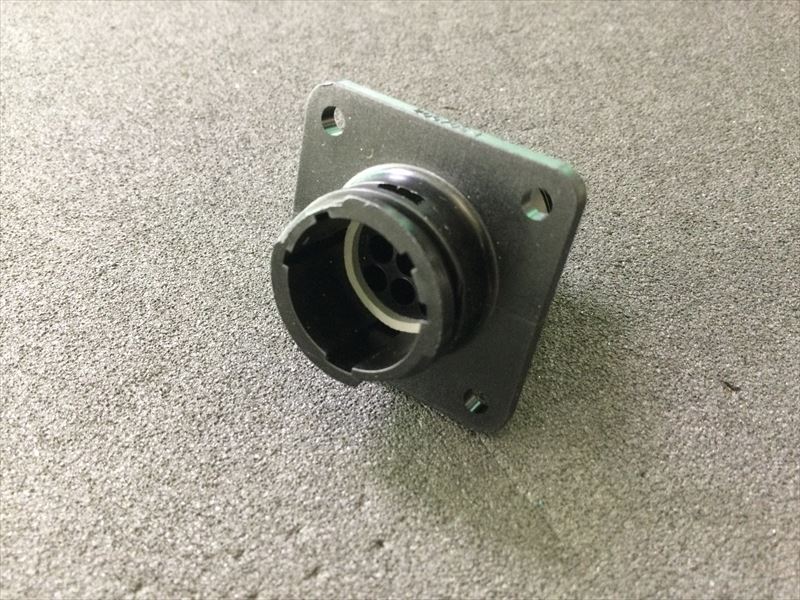

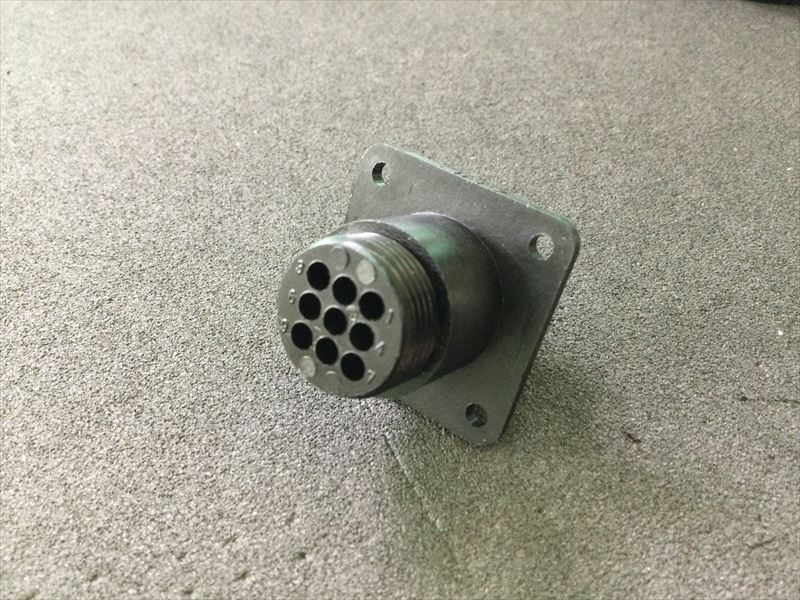

206705-3
1
-
- 個
２営業日以内に回答いたします
206705-3 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | 206705-3 |
|---|---|
| メーカー | AMP |
| Additional Feature | COMPATIBLE CONTACTS: 66425-6; 66425-7; 66429-3; 164159-3; 164162-1 |
| Backshell Type | SOLID |
| Body/Shell Style | RECEPTACLE |
| Connector Type | CIRCULAR CONNECTOR |
| Contact Finish - Mating | NOT SPECIFIED |
| Contact Finish - Termination | NOT APPLICABLE |
| Contact Gender | MALE |
| Contact Material | NOT SPECIFIED |
| Contact Style | RND PIN-SKT |
| Coupling Type | THREADED |
| DIN Conformance | NO |
| EMI Shielded | NO |
| Empty Shell | YES |
| Environmental Characteristics | IMMERSION RESISTANT |
| Filter Feature | NO |
| IEC Conformance | NO |
| Insulator Color | BLACK |
| Insulator Material | GLASS FILLED POLYAMIDE66 |
| MIL Conformance | NO |
| Mains Connector Rating | 13A |
| Mating Information | 206708-1 |
| Mixed Contacts | NO |
| Mounting Option 1 | 3/4 - 20 UNEF-2A |
| Mounting Option 2 | SCREW |
| Mounting Style | STRAIGHT |
| Mounting Type | PANEL |
| Number Of Connectors | ONE |
| Number of Ports | 1 |
| Operating Temperature-Max | 105 Cel |
| Operating Temperature-Min | -55 Cel |
| Option | GENERAL PURPOSE |
| Panel Mount | NO |
| Polarization | A |
| Polarization Key | POLARIZED |
| Rated Current (Signal) | 13 A |
| Rated Voltage | 600 V |
| Reference Standard | UL |
| Shell Size | 13 |
| Total Number of Contacts | 9 |
| UL Flammability Code | 94V-0 |
| 会社名称 | TE Connectivity Ltd. |
|---|---|
| 設立 | 1941 |
| 所在地 | Rheinstrasse 20 Ch-8200 Schaffhausen Switzerland |
| URL | http://www.te.com/ |
