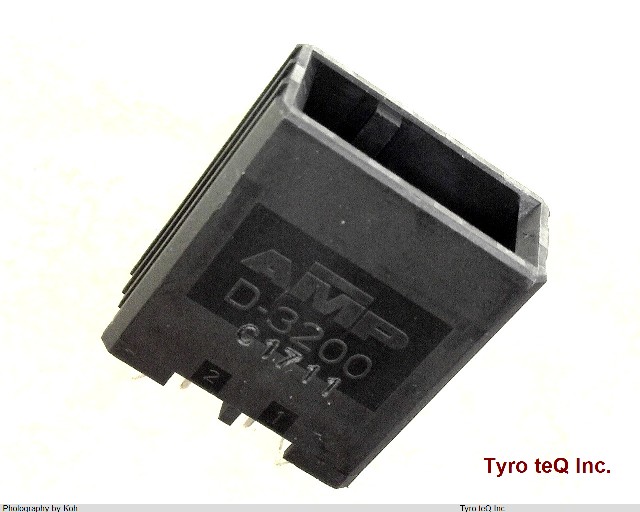

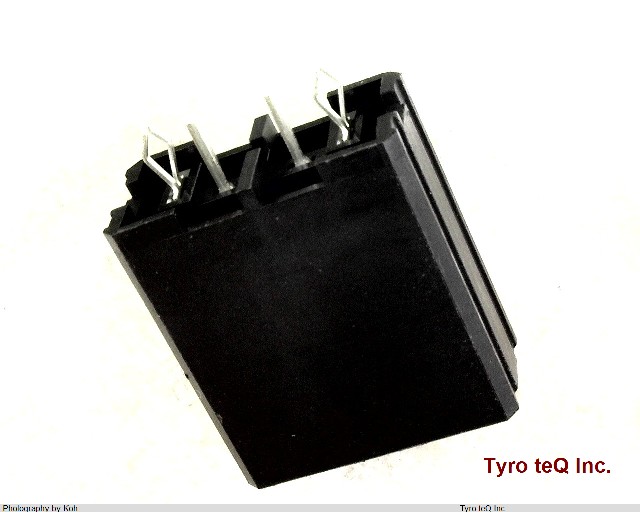

1-917337-3 データシート

Name: 1-917337-3
Brand: AMP
SKU: 20500903-0000-0000-0000

1-917337-3 - AMP の商品詳細ページです。

２営業日以内に回答いたします

1-917337-3 の詳細情報

型番	1-917337-3
メーカー	AMP
データシート
Board Mounting Option	SOLDERABLE RETENTION CLIPS
Body Breadth	0.368 inch
Body Depth	0.85 inch
Body Length	0.751 inch
Body/Shell Style	PLUG
Connector Type	BOARD CONNECTOR
Contact Arrangement	S0P2
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	MALE
Contact Material	NOT SPECIFIED
DIN Conformance	NO
Durability	500 Cycles
EMI Shielded	NO
Empty Shell	YES
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	100000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYESTER
MIL Conformance	NO
Mains Connector Rating	15A
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number of Ports	1
Number of Rows Loaded	1
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Panel Mount	NO
Plating Thickness	30u inch
Polarization Key	POLARIZED
Rated Current (Signal)	15 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.15 inch
Terminal Pitch	5.08 mm
Termination Type	SOLDER
Total Number of Contacts	2
UL Flammability Code	94V-0
